Detailed Description

Detail Information

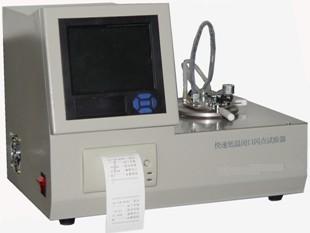

GD-5208 Rapid  Closed Cup Flash Point Tester for paints, adhesives, solvents, oils ,petroleum,etc





Introduction



GD-5208 Rapid Low Temperature Closed Cup Flash Point Testeris designed and made as per the National Standard of People’s Republic of China GB/T5208 “Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)”. It can be used in the field of petroleum, chemistry, paints, railway, aviation, power plant, inspection, military, and scientific research to determine flash point of petroleum products rapidly.



The Closed Cup Flash Point Testeris suitable to make closed cup flash point determination for paints, adhesives, solvents, petroleum, and relative petroleum products, the flash points of which are in the range of 30°C~50°C. It can also meet the requirements of ISO 1523 and ISO 3679.







Main technical specification and parameters





Power supply AC 220V±10%, 50 Hz
Flash point measurement range -30~50°C
Measurement accuracy Repeatability: less than 2°C
Reproducibility: less than 2°C
Temperature controlling accuracy ±0.5°C
Igniter an electron igniter
Refrigeration type It uses semiconductor for refrigeration (It connects to outer cooling water);
Power supply AC 220V±10%, 50 Hz
Total power consumption not more than 300 W
Ambient temperature 5°C~30°C
Relative humidity 30~80%







Main technical characteristics



1. It is designed as per GB/T5208 (Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)”. It can determine closed cup flash point at a low temperature rapidly.



2. It adopts semiconductor refrigeration device and cooling water refrigeration device. It is small, convenient and with rapid refrigeration speed.



3. It needs fewer samples. The sample for each test is only 2 ml (For solid or semisolid sample, it is 4 ml);



4. The test can be automatically completed excepting flame ignition. The test data can be automatically printed.
