GD-0165 Petroleum Oils Vacuum Distillation Test Equipment



Measuring Standards:
1. SH/T 0165-92 Test Methods for Distillation Characteristics of High Boiling Point Petroleum Products at Reduced Pressure.


Brief Introduction :




The instrument is designed and made as per the industry standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.



It is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.




Application Scope:
1. Paraffin oils.
2. Lubricating oils.
3. Other high boiling point petroleum products.

Main Technical Characteristics:
1. Desktop type.

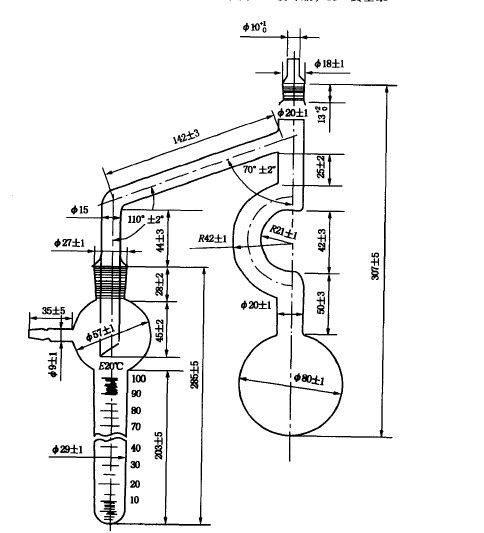

2. It s composed of distillation parts and vacuum parts. It is in accord with the requirements of SH/T0165.
3. The heating power of the distillation heating furnace can be continuously adjusted.
4. Equiped with a cooling device for the heating furnace, so the heating furnace can be cooled down after a test. It is convenient to make next sample determination.
5. The performance of vacuum pump is excellent. The maximum residue pressure is 2mmHg.

Technical Parameter:

Model GD-0165 Vacuum Distillation Tester
Heating power Heater for distillation flask: 1000 W
Heater for receiving flask: 350 W
Heating power 0~1000 W
Temperature controlling room temperature~100 °C
Temperature sensor for air bath Pt100
Temperature controlling accuracy ±1 °C
Cubage of buffer vessel 1000 ml
Max. Residual pressure of vacuum pump 2 mmHg
Illumination light in the air bath of receiving flask Electricity-saving lamp
Working condition Ambient temperature: 5°C to 35 °C
Relative humidity: ≤85%
