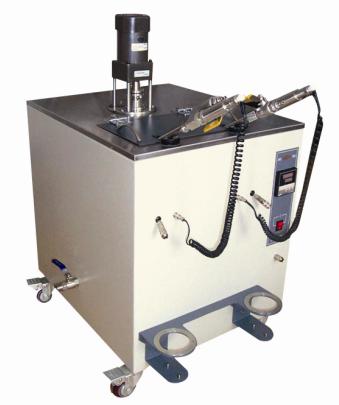

 GD-0193 Automatic Oxidation Stability Equipment
                                    GD-0193.Oxidation Stability Test Instrument.jpg

I Brief Introduction

The GD-0193 Automatic Oxidation Stability Tester  is designed and made as per SH/T0193 and ASTM D2272. It is suitable to determine oxidation stability of new or in service turbine oil, which has the same components (base oil and additive). It is also a rapid method for determining the oxygen stability of new mineral insulating oils containing 2, 6-Di-tert-butyl-p-cresol. It can check pressure, record test data, and calculate oxidation time for measured sample automatically. It can also end a test automatically. It can save test curves and test data automatically when show them on the display. The operators can print them out when needed. The test can be completed automatically without any human involvement after you start a test. This significantly lowers down the labor intensity of operators and highly improves the accuracy of test data. It is the best choice of companies for selecting an automatic instrument.

II Instrument parameters

Model GD-0193 Automatic Lubrcating Oils Oxidation Stability Tester (Rotary Oxygen Bomb Method )
Power supply AC220V±10%
Power of heater 2500 W
Full scale of pressure sensor 0~1.6MPa
Accuracy ±2‰
Temperature controlling range of oil bath room temperature~200.0°C
Temperature controlling accuracy ±0.1 °C
Speed of rotary assembly 100±5 RPM
Angle between bomb and water surface 30 degree
Size 550mm×800mm×1000mm
Oil bath cubage 3L
Weight about 45 kg
