Cable Tray Roll Forming Machine
Posting date : May 24, 2011
Membership
Free Member Scince Oct 18, 2010
Keyword :
Category
Contact
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
HS-CODE
85-
Package & Delivery Lead Time
Detailed Description

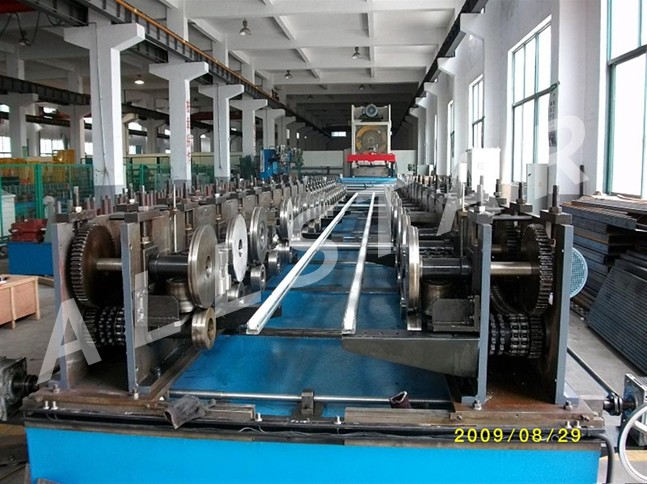

Product Description Technical Specifications: Specifications: Part A.Cold Roll Forming Machine Thickness of forming sheet *1.0mm to 2.0mm *2.0mm to 3.0mm Forming shape: *75mmx45mmx15mm *(75,100,125,150)mmx50mmx15mm *(150,200,250)mmx60mmx20mm *(200,250)mmx75mmx20mm *other customized sizes Forming speed:15m/min Roll shaft dia:60mm in S45C with precision polishing and hig frequency Roll Stands:13~16 sets of roll in SK2/Suj2 with heat treatment Main motor:20~30HP hydraulic motor Driven type:Use chain drive This equipment for the rollers can be fixed type for one size only or convertible for 4 sizes. Control box:Alls push button,switches,pilot lamps,and emergency stop switch in computer system with touch screen PartB.Uncoiler:Reel type Machine size(Approx):500Kgw Coil stock inner dia:350mm to 508mm Coil stock outer dia:1300mm Coil width:200mm~400mm Loading capacity:4000kgs max. Driving :free run Part C.Hydraulic cutting device: Attached with the rear-cutting blade in SKD-11 Complete with the pre-cutting blade Complete with one set of punching device Complete with one set of tachometer for automatic prodction Hydraulic cutting system is controlled by computer. --------------------------------------------------------------------------------------------Shanghai Allstar Industrial CO.,Ltd is a high-tech enterprise and key privately-owned enterprise of Shanghai,which is one of first manufacturer specialized in designing and manufactuing various kind of roll forming machine,subsidiary machines and sandwich panel line machiney. Sincerely wish to establish a long-run business relationships with friends both at home and abroad.to create a brighter future. Main product:roll forming machine,EPS/PU sandwich panel production line,rolling shutter door panel line,pu sandwich garage door panel line,corrugated sheet roll forming machine,double layer roll forming machine,c/z/u/hat purlin roll forming machine,glazed tile roll forming machine,roof/wall panel roll forming machine,highway guardrail roll forming machine,square/round downpipe roll forming machine,floor deck roll forming machine,tapered sheet roll forming machine,joint hidden roll forming machine,three waved layer roll forming machine,door frame roll forming machine,k span roll forming machine,hydraulic curving machine,roof ridge cap roll forming machine,bemo sheet roll forming machine,half round/square gutter roll forming machine,etc. Contact:Ms.Linda Zhao 008613611737487 skype:zhaolinge123
