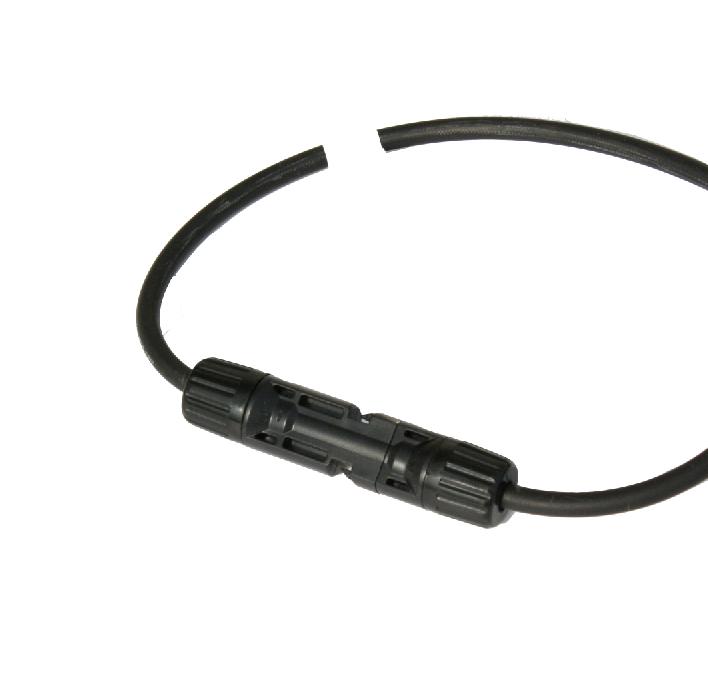

MC4 cable connector

Quick Detail

Package & Delivery Lead Time

Detailed Description

MC4 cable connector 1.Water proof and dust proof 2.Simple,quick installation 3.suitable to MC4 solar connector system 4.TUV approved 5.competitive price Main feacture: 1.It adopts contact and insertion of reed with inner-knob type. 2.It is used with male and female points. 3.PV junction box and cables made of elastomeric material and makes conact and isertion more certified by TUV. 4.With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover. 5.To meet the using requirement under bad outdoor condition 6.Adopt tight-hoop connection of cable 7.Fastness of male and female points with stable auto-lock equipment which is easy to lock and open Technical data: Mode:RO-1A Rated voltage:1000VDC Rated impluse voltage:8000V Rated insulation voltage:6000V Rated current:16A Protection class:2 Pollution degree:2 Over voltage category:3 Lower ambient temperature:-40℃ Upper ambient temperature:+85℃ Type of conductor:flexible Values for cable clamp:6.1±0.1m Number of poles:1 Wire cross section area or cross section range:1*2.5 4.0mm2 Degree of protection:IP67
