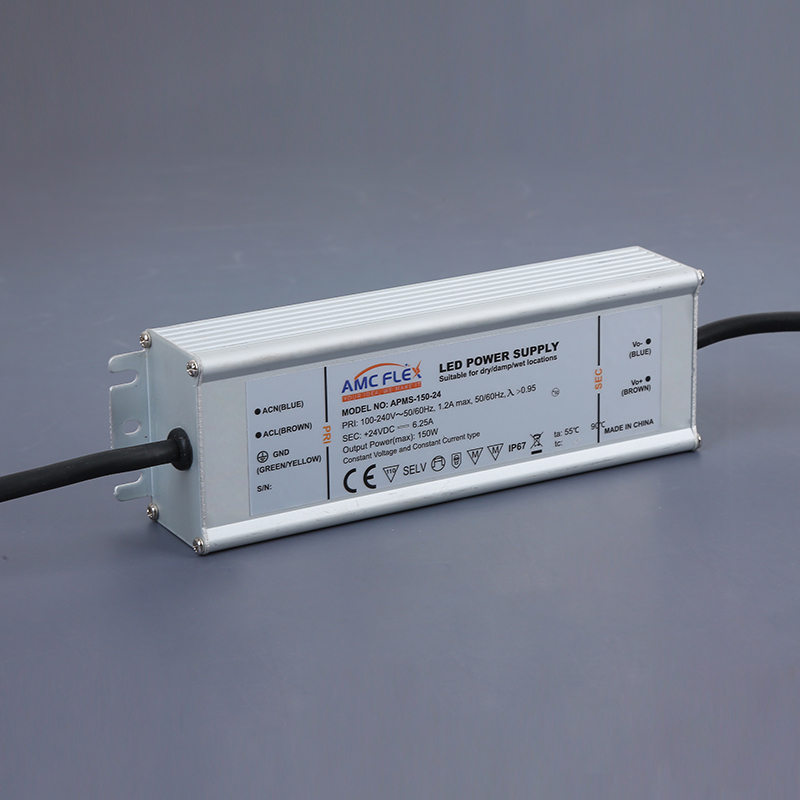

150W 24V 6250mA Voltage outdoor LED Power Supply
0 likes
China [CN] Model:APMS-150-24
Technical Specs:
Rated Output voltage: 24VDC
Rated Output Current:6.25A
Rated Output Power:150W Max
Efficiency>92%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:1.0A
Inrush Current<70A
Power Factor>0.95
THD<15%
3. Protection
Overload
Short Circuit
Over voltage
Over Temperature
4. Environment
Operating Temperature range:-40 to +80℃
Storage Temperature range:-45 to +80 ℃
Humidity: 10～95%
Waterproof
Level:IP67
5. Safety Standards
UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,
GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P:3KV
EMI,EMS
EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,
8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,
EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6
6. Others
MTBF>200Khours
Dimension:180(L)*63 (W)*40(H)mm
Packing: 0.8KG/PC, 350x310x260mm, 16pcs / 14.3 Kg /0.02CBM/CTN
Model NO | Input Voltage | Output Voltage | Output current | Output Power | Efficiency | Dimension/mm |
APMS-150-24 | 200-277Vac | 24V | 0-6.25A | 0-150W | 92% | 180x63x40 |
APMS-150-36 | 200-277Vac | 36V | 0-4.16A | 0-150W | 92% | 180x63x40 |
APMS-150-48 | 200-277Vac | 48V | 0-3.125A | 0-150W | 93% | 180x63x40 |
APMS-150-54 | 200-277Vac | 54V | 0-2.77A | 0-150W | 94% | 180x63x40 |
