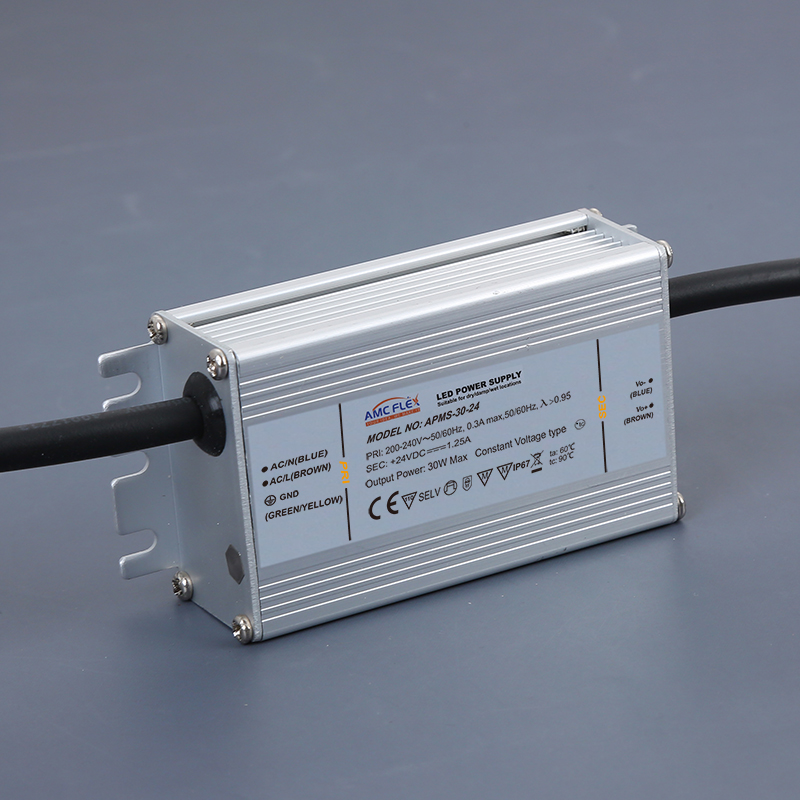

30W 24V 1250mA Voltage outdoor LED Driver Flicker-free
0 likes
China [CN]
Model:APMS-30-24
Technical Specs:
Rated Output voltage: 24VDC
Rated Output Current:1.25A
Rated Output Power:30W Max
Efficiency>88%
Line Regulation:±0.5%
Load Regulation:±1.5%
Voltage tolerance:±3%
2. Input Parameters
Rated Input voltage:200-277VAC
Input voltage range:176-305VAC, 47-63hz
Input Current Max:0.3A
Inrush Current<20A
Power Factor>0.95
THD<15%
3. Protection
Overload
Short Circuit
4. Environment
Operating Temperature range:-40 to +80℃
Storage Temperature range:-45 to +80 ℃
Humidity: 10～95%
Waterproof Level:IP67
5. Safety Standards
UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,
GB19510.14, IP67 Approved
Withstand voltage: I/P-O/P:3KV
EMI,EMS
EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,
8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,
EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6
6. Others
MTBF>200Khours
Dimension:104(L)*51 (W)*28.5(H)mm
Packing:0.35KG/PC,350 x 310 x 260 mm, 40pcs /15.5Kg /0.02CBM/CTN
Model NO | Input Voltage | Output Voltage | Output current | Output Power | Efficiency | Dimension/mm |
APMS-30-24 | 200-277Vac | 24V | 0-1.25A | 0-30W | 88% | 105x51x28.5 |
APMS-30-36 | 200-277Vac | 36V | 0-0.83A | 0-30W | 88% | 105x51x28.5 |
APMS-30-48 | 200-277Vac | 48V | 0-0.625A | 0-30W | 89% | 105x51x28.5 |
APMS-30-54 | 200-277Vac | 54V | 0-0.55A | 0-30W | 90% | 105x51x28.5 |
