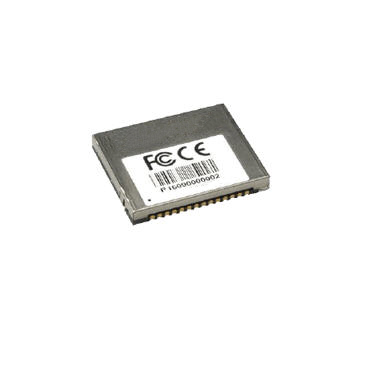

SiRFstarV GPS/GLONASS Module Ct-G530P

Posting date : Nov 22, 2022

Click enlarge Image

Membership

Free Member Scince Mar 25, 2010

FOB Price

Min. Order Quantity

Supply Abillity

Port

EX WORK

Payment Terms

T/T;paypal

Package

Keyword :

Category

MACHINERY & ELECTRICAL | Electrical | Diodes tra

Contact

Adrain

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

Taiwan [TW]

Brand Name

connectec

Model Number

Ct-G530P

HS-CODE

8541-

Package & Delivery Lead Time

Package

Detailed Description

Ct-G530P utilized SiRFstarV ™ and features Quad-GNSS for tracking GPS, GLONASS, BDS and Galileo satellites. The product family delivers highly accurate continuous location, advanced power management and high interference immunity. These continue to push the envelope of performance in sensitivity, TTFF and urban canyon availability and accuracy. With a built-in DSP and extremely low power consumption, the family can get fast location fixes for geo-tagging images or videos, asset tracking and wearable applications.

Performance

GPS, GLONASS, Galileo, BDS and SBAS reception for high GNSS availability and accuracy
High sensitivity navigation engine (PVT) tracks as low as
- GPS : -165 dBm
- GLONASS : -161 dBm
52 track verification channels
SBAS (WAAS or EGNOS,MSAS)
Active Jammer Remover, removes in-band jammers up to 80 dB-Hz
Tracks up to 8 CW jammers
Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted), need operator support.
Embedded CGEE / SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.
SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.
Reacquisition Time : 0.1 second
RF Metal Shield for best performance in noisy environments

Hardware and Software

Based on the high performance features of the SiRFstarV™ low power single core logic.
Adaptive micropower controller
Only 50 to 500μA maintains hot start capability (core logic)
< 10mW required for TricklePower™ mode
RoHS compliant (lead-free)
SMT pads allow fully automatic assembly processes equipment and reflow soldering
Advanced navigation features
Smart sensor supported by I²C interface
External interrupt input for context change detection

Advantages

Built-in LNA.
Built-in internal ROM and based on Firmware 5.5.X
It can remove in-band jammer up to 80db-Hz and track up to 8CW jammers, so the module can prevent GPS signal interference when design-in the electrical device with noisy electrical signal interferences such as Laptop, mobile phone, DSC, etc.
Maintain tracking sensitivity as low as GPS @ -165dBm, GLONASS @ -161dBm, even without network assistance. (SiRFstar III has only -159dBm sensitivity)
Support SiRFaware™ technology
Support adaptive“Micro Power Controller”power management mode.
< 10mW TricklePower™, so user can leave power on all day instead of power off.
Suitable for battery drive devices that need lower power consumption application
Cost saving through elimination of RF and board to board digital connectors
Flexible and cost effective hardware design for different application
Embed CGEE (Client Generated Extended Ephemeris) that can capture ephemeris data from satellites locally and predicts ephemeris up to 3 days. So if the module was off within 3 days, it could complete positioning process with limited time just like hot start.
