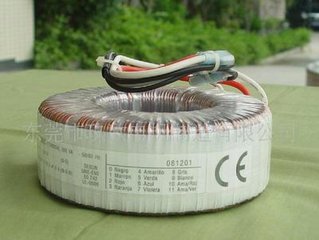

Waterproof Outdoor Toroidal Transformer for Swimming and Lighting

Name :

105VA to 1000VA Waterproof Toroidal Transformer for outdoor lighting

Certification:

 1.We have abtained IEC,VDE,UL,CE,ISO9000 approval .we guarantee quality is the first.

2.waterproof Transformer's Dimension Sheet:

(Note:Rated 105VA-1000VA for devices 105VA-1000VA watts or less,

GWET-105 means 105VA size )

3.Waterproof outdoor toroidal Transformer's Spcification:

1).WORKING AND SAFETY PROTEETION    Eiectrostatic Shield           Magnetic Shield√ TemperatureProtection     OverCurrent Protection2).INSULATIONInsulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown

Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)3).TEMPERATURE RISETa=25ºCTest by resistance method At rated load  PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.4).MAJOR MEASUREMENT FACILITIES: HI-POT TESTER: CJ2670INSULATION-RESISTANCE METER: ZC-7VOL TMETER: T19-VDC-RESISTANCE METER: QJ44AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:Input Voltage:AC 220V   230v 110v (Define the voltage) Output voltage:AC 12V / 24V       (Define the voltage)Power range:105VA-1KVA

6) Waterproof toroidal Transformer's materials:

* Annular core: Cold rolling directional silicon steel * Insulation protection: Mylar* Core Insulation: Polyester 7C* Primary/Secondary Winding: Enamelled copper wire* Terminal cannula: PVC canula* Termial uderlay: Polyester 19C* Temperature Protection: Thermal Switch* Pri.Insulation: Polyester 7C* Insulation protection: Mylar* Coating insulation: Polyester 5C* Lead: UL WIRE* Potted resin: Potted resin* Body: PP+GFRP

7)Standard conditions and components:

* Transformer should meet "Short-circuit-proof safety isolating transformer (inherently

or non-inherently) IEC 61558-2-6:09"* Thermal Switch 17AM 211 120°C Sensata Technologies or equivalent (UL E15962)* Thermal Fuse A7-5A-F 5A/138°C Aupo Electronics or equivalent (UL E140847)* Transformer is double insulated (Class II) with Insulation Class B 120°C* Insulation tests 500VDC 100M ohm min and 4kV for 5 seconds at 5mA max leakage current4.Application:

Garden light

LED underwater lamp LED Ground lightOutdoor power Supply

Humidifier

Swimming poolRound Enapsulated Transformer with wire leads ,power range: 25VA-6000VA

Waterproof Encapsulated transformer Application:

1. Garden light 2. LED underwater lamp 3.LED Ground light4.Outdoor power Supply5.Audio sound field6.Stage lighting

7.Outdoor lighting

8.Christmas LightsAdvantages:100% copper wire made2.Toroidal style3.plastic cover :ABS fire Material of withstand high temperatures 4.Epoxy resin 4.high performance insulation 5.Anti-corrosion, waterproof performanceMain parameters:Input Voltage:AC 220V   230v 110v (Define the voltage) Output voltage:AC 12V / 24V       (Define the voltage)Power range:25VVA-6KVA

5.Advantages:

100% copper wire made

Toroidal styleplastic cover :ABS fire Material of withstand high temperatures Epoxy resin high performance insulation Anti-corrosion, waterproof performance

RELATED UNDERWATER TOROIDAL TRANSFORMERS:a. Power range:10VA-25VA    PCB Encapsulated Transformerb. Power range:10VA-6KVA
