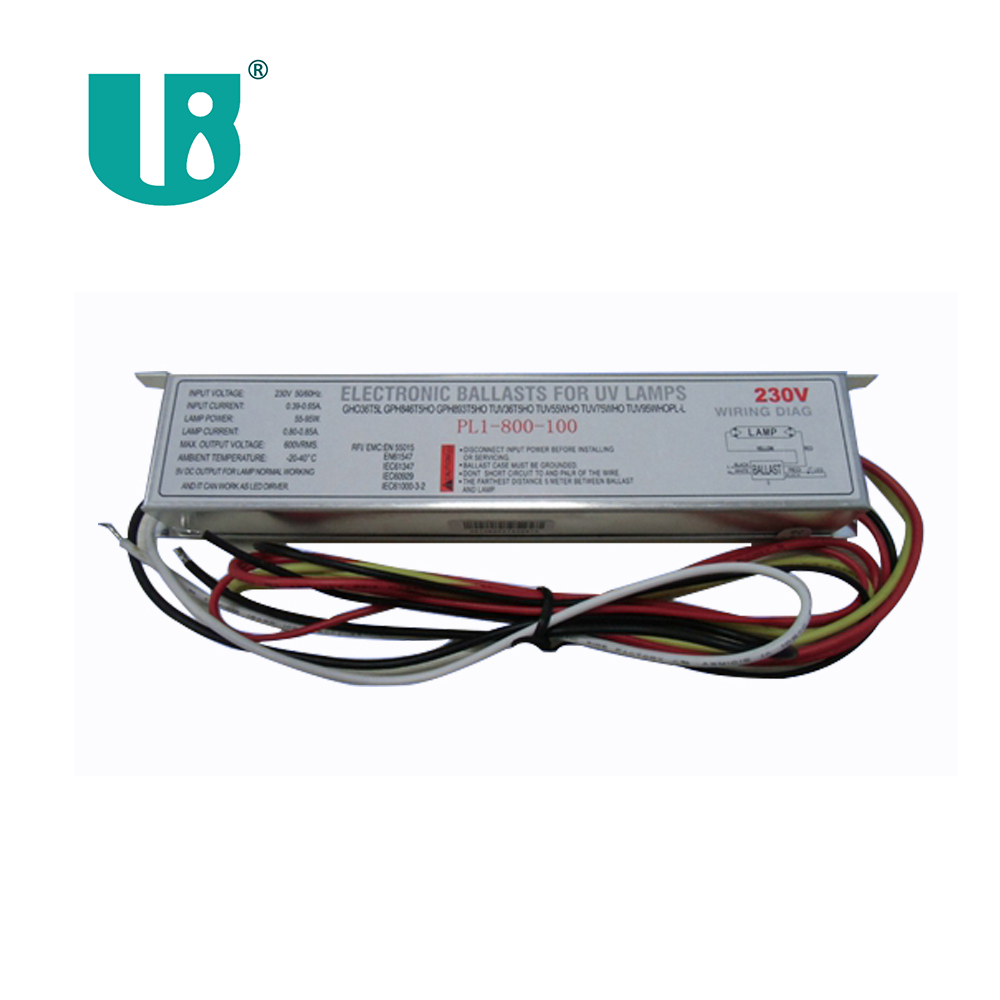

PL1-800-100 uv ozone lamp electronic ballast
0 likes
China [CN] The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
|
Type |
Input Voltage(V) |
Input Power (W) |
Input Current (A) |
Power Per Lamp (W) |
Lamp Current (A) |
Weight (kg) |
Packing (mm) |
Qty ( pcs ) |
GW (kg) |
|
PL1-425-90 |
198-264 |
87 |
0.69A@230V |
21-79 |
0.39-0.43 |
0.35 |
450*280*190 |
30 |
11 |
|
PL1-425-2/40 |
198-264 |
87 |
0.69A@230V |
21-40 |
0.39-0.43 |
0.35 |
450*280*190 |
30 |
11 |
|
PL1-800-100 |
198-264 |
105 |
0.83A@230V |
35-95 |
0.75-0.85 |
0.35 |
450*280*190 |
30 |
11 |
Lamp Type: GPH1148T5 GPH1554T5 GPH1630T5 TUV64T5 G48T5L G64T5L G67T5L
l Technical specifications
Mains Frequency:50/60Hz
Power Factor: >0.55
Efficiency: >90%
Operating Frequency: 40-70KHz
Starting:Instant
Dimensions: 215*44*26mm
Input line length:430mm
Output line length:630mm
Signal line length:630mm
l Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
LDE specification:VF=1.8-3.6V IF =20-50mA
l Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.
The yellow wire must be insulated when driving a lamp.
l For applications with less than one switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start operation,ask lamp manufacturer.
l Features
Lamp status indication via DC signal output.
DC3~6V 5mA:lamp on. DC 0V:lamp fault or on lamp. Connect LED.
l Applications
All areas of applications include UV lamps
=>Air purification
=>Aquarium
=>Industrial water treatment
=>Kitchen purification
Lightbest provided: OEM service Buyer Logo /Label Custom Design Service
Guarantee:A: Manufacture is to ISO9001:2000 standard.B: Product is guaranteed for 12 months after lamp purchase.C: According to the International Standard:AQL tolerance is within 2% of the total quantity per order.D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will
be deducted from the next order.E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.
WARNING:UV-C radiation output of these lamps is harmful to unprotected eyes and skin.Appropriate safety wear must be worn, or installations completely scree
