TSGC2 Three Phase Voltage Regulator
Posting date : Aug 27, 2018
Membership
Free Member Scince Aug 03, 2018
FOB Price
-
Min. Order Quantity
-
Supply Abillity
99999
Port
Ningbo, China
Payment Terms
T/T and others
Package
Box
Keyword :
Category
Contact
Chen
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
TAIXI
HS-CODE
8504-40
Package & Delivery Lead Time
Package
Box
Detailed Description
Product Overview

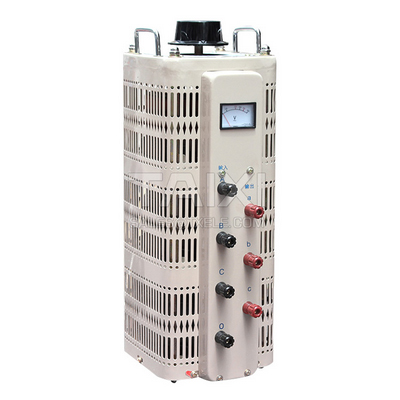

TSGC2 Three Phase Voltage Regulator is made of three single phase contact voltage regulators adopting "Y"-shaped connection; the carbon brush holder is mounted on the same central shaft, and the rotating shaft drives three coaxial carbon brushes to make the brush slide along the coil surface to change the contact position of the brush, that is, to change the turn ratio of primary and secondary coil, so that the output voltage can be adjusted smoothly in the voltage regulation range.

Main parameters and technical performance
Input voltage: 380V
Output voltage: 0~430V
Max voltage drop: 5V (cosφ=1)
Temp rise: <60KFrequency: 50/60Hz
Insulation Resistance: ≥5MΩ
Withstand Voltage: 2000V/1min
Insulation grade: A
Max rated current: 2, 4, 8, 12, 20, 27, 40, 60A
Max rated power: 1.5, 3, 6, 9, 15, 20, 30, 45kVA
