4KW 6KW Laser Cladding Machine /Laser Cladding Equipment on Saler
0 likes
China [CN] General Introduction

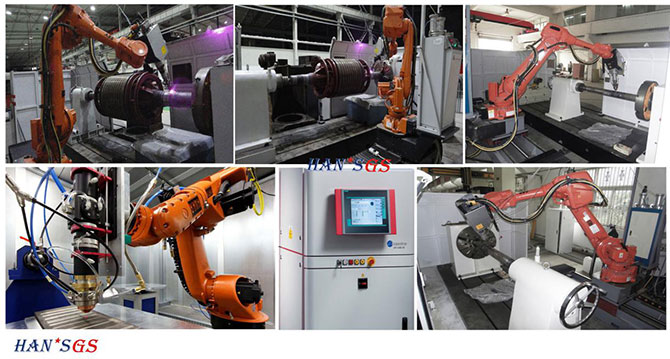

The fiber-coupled semiconductor laser robot flexible manufacturing complete sets of equipment is a large integrated equipmentcombined with Optical, mechanical and electrical and cooling, and material processing technology. The complete set of equipment is composed by the original imported German LASERLINE fiber coupled laser diode, laser light guiding system (feeding fiber,laser head), laser chiller, six axis linkage KUKA robot, laser processing machine tools, integrated control systems, coaxial powder feeding system, etc, equipped with repair laser quenching, laser cladding, laser alloying, and other functions, its composition, technical parameters, requirements.
Robot laser welding equipment consists of : robot , fiber laser, laser welding head, refrigerator, mobile workstations, wire feeder, offline testing, seven-station rotary indexing table and welding fixtures and other components.
.jpg)
Specification:
|
Model |
GS-LS3DA |
|
|
Max.Outside Diameter |
70mm |
|
|
Optical Diameter |
44mm |
|
|
Machine Weight |
5kg(Does Not Contain The Nozzle) |
|
|
Laser Beam Quality |
60mm.Mrad |
|
|
Collimating Focal Length |
81mm |
|
|
Focal Length |
400mm |
|
|
Spot Size |
Ø3mm |
22mm×3mm(Optional) |
|
Optical Fiber Connector Socket |
LLK—D |
|
|
Storage Temperature |
5-65℃ |
|
|
Operating Temperature |
Max.50℃ |
|
|
Temperature |
Non-Condensing |
|
Mobile workstations
 |
Stroke | 5000mm |
| Maximum speed | 5M / min | |
| Positioning accuracy | ± 0.05mm | |
| Repeat positioning accuracy | ± 0.02 | |
| Servo motor | 2.5KW |
Features of the robot laser welding equipment
1, A wide range of materials can be welded. Carbon steel, stainless steel, aluminum and other metals can be welded.
2, Three-dimensional welding robot software can be equipped, can achieve 3-dimensional welding.
3, A wide range of applications. Aerospace, locomotive manufacturing, engineering machinery, textile machinery, agricultural machinery, elevator manufacturing, automobile manufacturing, electrical hardware manufacturing, IT and other industries.
4, Low consumption. 4000W laser source consumes about 15 degrees / hour. Protection lens 0.5-1.0 yuan / hour.
5, High welding speed, high efficiency, safe operation and stable performance.
6, Provide smooth, beautiful welding appearance without deformation.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
Sample

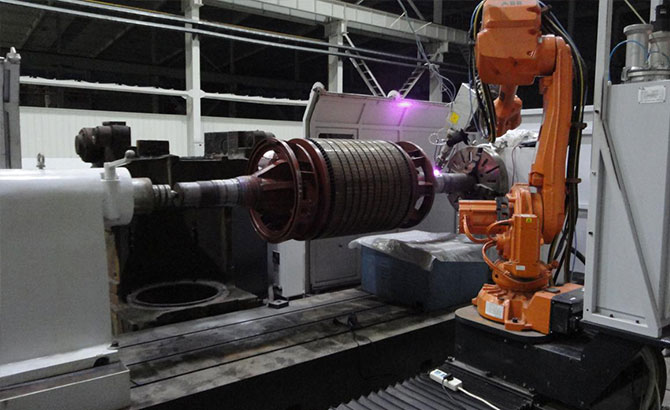

Laser hardening,Cladding,Repair and Alloying for the roller
Click enlarge Image
