95mm2 Aluminium Conductor Steel Reinforced Cable

Introduction of the 95mm2 Aluminium Conductor Steel Reinforced Cable

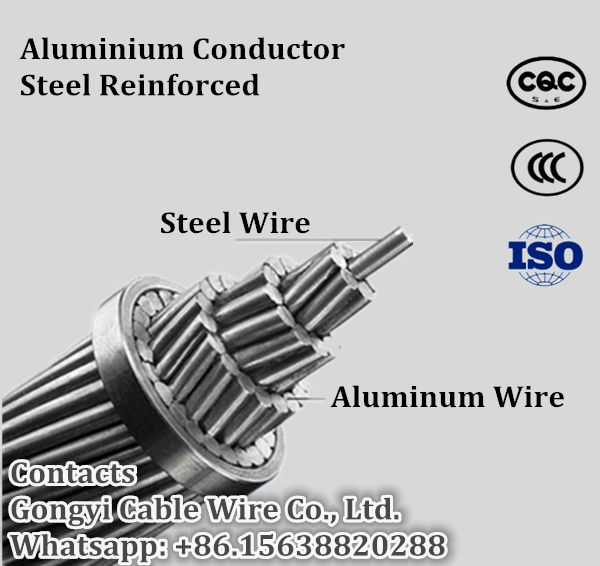

Aluminium Conductor Steel Reinforced is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purityaluminium, chosen for its excellent conductivity, low weight and low cost. The center strand, or strands is/are of steel for additional strength to help support the weight of the conductor. Steel is higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor. Steel also has lower elastic and inelastic deformation (permanent elongation) due to mechanical loading (e.g. wind and ice) as well as a lower coefficient of thermal expansion under current loading. These properties allow ACSR to sag significantly less than all-aluminium conductors.

Application of 95mm2 Aluminium Conductor Steel Reinforced Cable

ACSR conductor have been widely used in power transmission lines with various voltage. Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.

95mm2 Aluminium Conductor Steel Reinforced Cable Standard

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110, and customers’ special specifications also can be satisfied.

95mm2 Aluminium Conductor Steel Reinforced Cable Standard Package

In coils, wooden drums, steel drums or steel-wooden drums. We could producing according to the customers' requirements.
