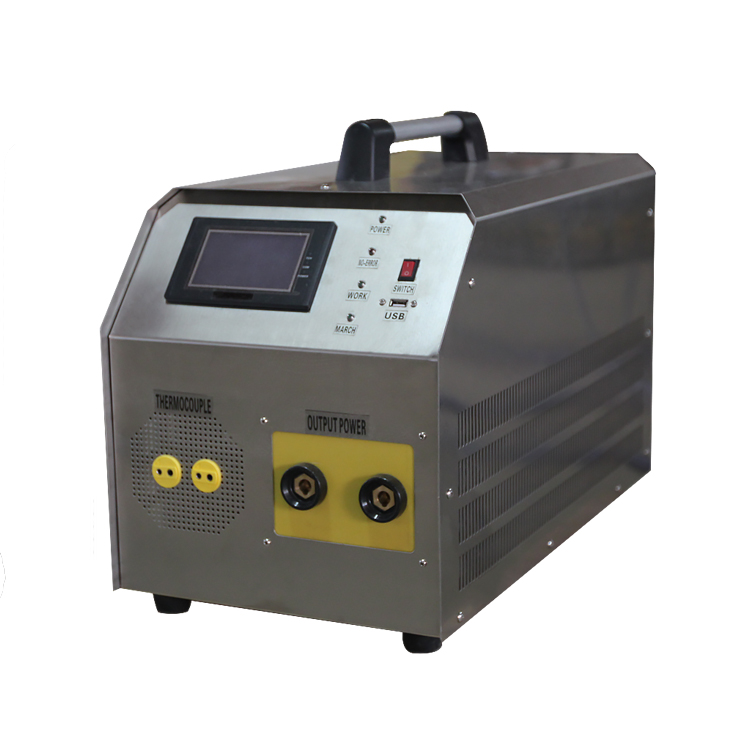

MYD-120KWprotable induction prewelding heating treatment equipment machine

Product

MYD-120KWprotable induction prewelding heating treatment equipment mac...

Posting date : Mar 31, 2017

Click enlarge Image

Membership

Free Member Scince Mar 28, 2017

FOB Price

USD2000~50000

Min. Order Quantity

Supply Abillity

Port

SHEN

Payment Terms

Package

stardand wood

Keyword :

heating system

Category

MACHINERY & ELECTRICAL | Electrical | Industrial | Equipment

Contact

candy

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

OEM

Model Number

MYD-120KW

HS-CODE

8514-40

Package & Delivery Lead Time

Package

stardand wood

Delivery Lead Time

Detailed Description

Model

MYD-40KW

MYD-50KW

MYD-60KW

MYD-80KW

MYD-100KW

MYD-120KW

Input Power

3*380VAC (Default), 3*220VAC (Optional), 3*440VAC (Optional)

Output Frequency

2KHZ ~ 30KHZ

Output Power

40KW

50KW

60KW

80KW

100KW

120KW

Input Current

60A

75A

90A

120A

150A

180A

Air Cooling

Heating size:¢100-1500mm

Size: 800*560*1350mm

DSP control

Max:900℃; Heating Speed: 5-400℃/min

Packing size:900*660*1560mm

6 Channels control

10 curves recorder

Net weight: 120kg

Gross weight with parts: 155-260kg

Main parts

Induction coil

K Thermocouple

R-1006 Temperature Recorder

Connection cable

Insulation Blanket

Thermocouple Connection cable

1-Input Voltage: 380V, 3 phase, 50/60HZ

2-Output Frequency: 2KHZ ~ 30KHZ

3-Output Power: 120KW

4-Cooling: air cooled

5-Heating Speed: 5-400℃ per minute

6-Heating temperature range: -30℃-900℃

7-Heating parts size range:¢100-1500mmor equal

8-Induction coil: 10-45meters long high temperature cable with air cooled

9-Temperature recorder: 6 Channels for temperature controlling

10-Thermocouple: K Type (5-45 Meters long link cable)

11-Size: 800*560*1350mm Net weight: 120kg;

12-Packing size:900*660*1560mm,Gross weight: 155kg.

Features

1-Air cooling: working well at -10℃-40℃

2-Induction heating power: To heat the work job with insulation blanket around it. High heating speed and heating efficiency with little energy lost.

3-PLC touching screen: Intuitive to see and easy to operate.

4-Soft induction coil: Easy to wind on different work piece.

5-The Removable opening Induction coil: easy to operate and move.

6-Temperature recorder: Record the whole heating curve.

7-Temperature Controller: Heating according to the heating requirement details with the ±3℃ tolerance.

The option parts of induction heating system

1-Induction heating power

2-Induction coil (Clamp induction coil) or (Soft induction coil)

3-Connection cable for the convenient to link the coil and the heating power

4-Temperature controller

5-PLC touch screen

6-Temperature recorder with printer

7-K type thermocouple&connection cable

8-Insulation Blanket

9-And other part.

Advantage:

1-Uniform

2-High Speed

3-Energy Saving: 30-80%

Applications&using fields

Our MYD series heating system are air-cooled induction heating equipment with DSP system.

Their main applications are pipeline heat, pre-weld heat, post-weld heat treatment, stress relief, injection mold heating, annealing, etc.

1-Pre-heat:for coating, bending, fitting&unfitting, weld.

2-Post-weld heat treatment: tank, boiler or other metal jobs

3-Heating: mold heating, shipboard, zinc bath, large& irregular metal parts

4-Pipeline heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, mold, screw barrel industries,etc.
