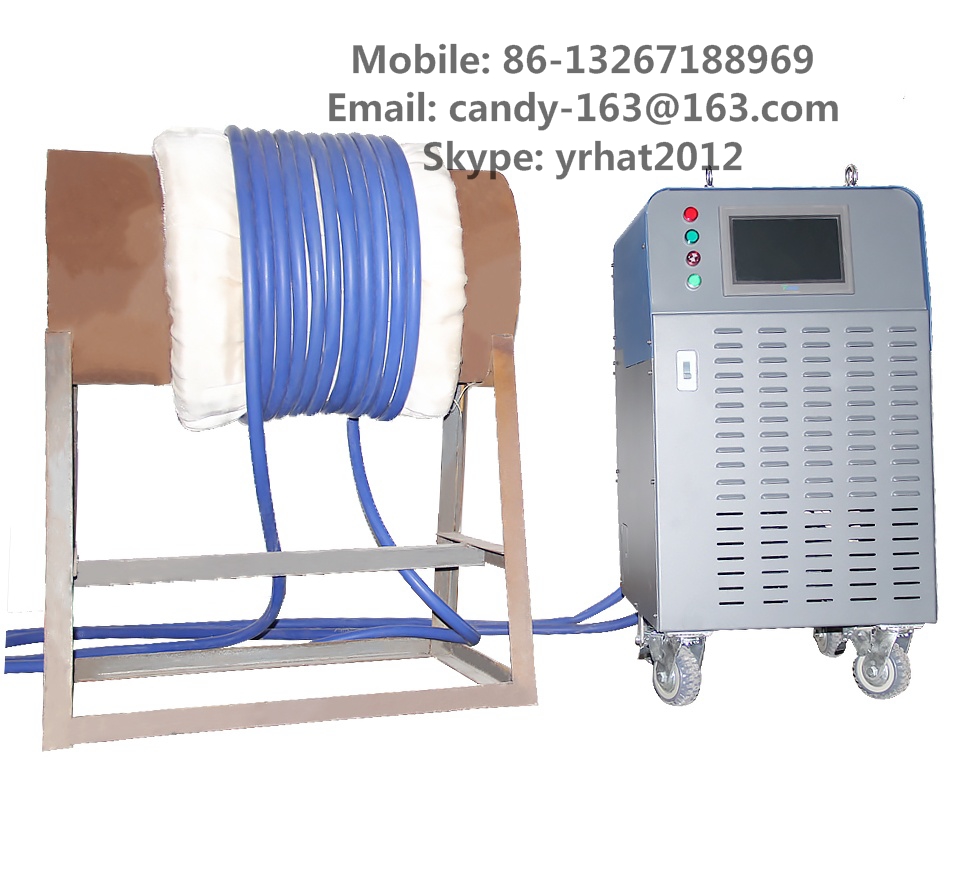

MYD-20KW induction welding heating equipment

Posting date : Mar 31, 2017

Click enlarge Image

Membership

Free Member Scince Mar 28, 2017

FOB Price

USD2000~USD50000

Min. Order Quantity

Supply Abillity

Port

SHEN

Payment Terms

Package

stardand wood

Keyword :

heating equipment

Category

MACHINERY & ELECTRICAL | Electrical | Industrial | Equipment

Contact

candy

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

OEM

HS-CODE

8514-40

Package & Delivery Lead Time

Package

stardand wood

Detailed Description

Items	MYD-20KW Induction Heat Power	MYD-10KW Induction Heat Power
Input voltage	*3380V, 50/60Hz, 4 Wires**	*3380V, 50/60Hz, 4 Wires**
Input Current	1~30A	1~15A
Output Current	0~300A	0~200A
Output Power	1~20KW	1~10KW
Output	5~30KHZ	5~30KHZ
Frequency
Thermocouple	K type	K type
Temperature	Build in induction machine	Build in induction machine
system
Heating	Max800℃	Max500℃
Temperature
Size	700 x 330 x 410 mm	650 x 310 x 410 mm
Weight	32kg	26 kg
	Induction Heating coil
Length	10~20 M	10~20 M
Diameter	15 mm	15 mm
temperature	-30~45℃	0~35℃
Pipeline Size	OD: 50~500mm or equivalent	OD: 50~400mm or equivalent

Technical:

Input voltage: 3*380V, 50/60Hz, 4 Wires

Input Current: 1~30A

Output Current: 0~300A

Output Power: 1~20KW

Output Frequency： 5~30KHZ

Heating Temperature：Max800℃

Main Features

1-High speed: 70%

2-Low tolerance

3-Energy Saving

4-High efficiency

5-Accurate heating

6-Simple operation

7-Non-contact heating

8-6Environmental protection

9-Hypothermia circumstance

10-Air cooling is suitable for low-temperature environment

Induction heating is more uniform than oil,gas,flame heating

Main Applications:

1-Preheat: weld heat,coating, spraying, bending, fitting&unfitting heat.

2-Post-weld heat treatment: tank, boile, pipeline, steel sheet or other metal jobs

3-InductionHeat: mold heating, shipboard, zinc bath, large& irregular metal parts

4-Pipeline material heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

Advantage:

1-Uniform

2-high speed

3-Energy Saving: 30-80%

Storage:

1-Dirt, dry environment

2-Temperature at -20 ~ 60C

3-Humidity must be in the range of 0% to 95%, and no dew

4-Avoid contain corrosive gases, liquids
