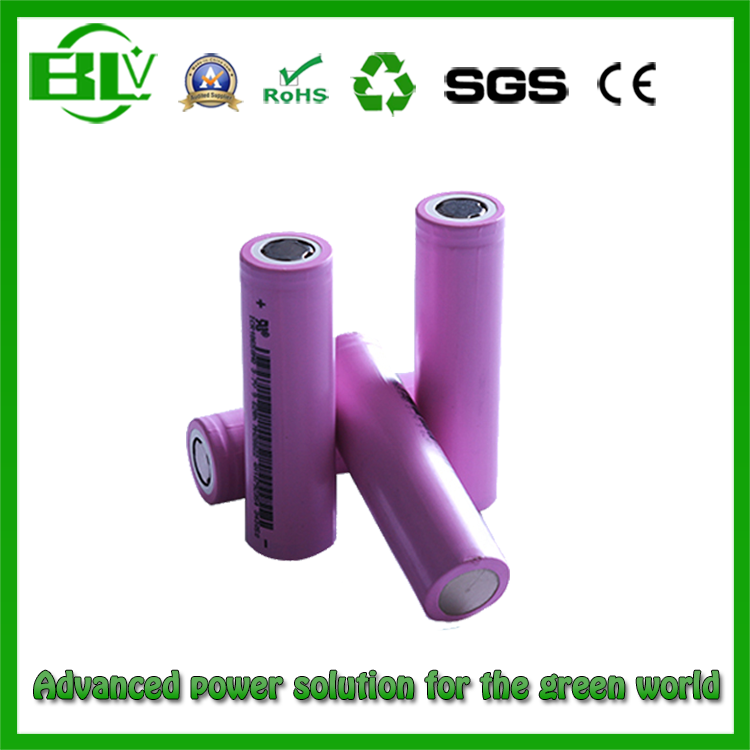

High quality 18650 2800mAh 3.7V Lithium-Ion/Li-ion Battery with cheap price
0 likes
China [CN] |
Item
|
Parameter&tech spec
|
Remarks
|
|
|
1
|
Nominal Capacity
|
2800 MAh
|
Standard charging&discharging
|
|
2
|
Rating Voltage
|
3.70V
|
|
|
3
|
End of charging Voltage
|
≤60mΩ
|
|
|
4
|
End of charging current
|
4.20±0.02V
|
|
|
5
|
End of charging current
|
0.02 C5A
|
|
|
6
|
End of Discharge current
|
3.0V
|
|
|
7
|
End of Discharge Voltage
|
0.02 C5A
|
|
|
8
|
Standard dischargingcurrent
|
0.02 C5A
|
|
|
9
|
Fast charging current
|
0.5C5A
|
|
|
10
|
Fast discharging current
|
0.5C5A
|
|
|
11
|
Max discharging current
|
2C5A
|
|
|
12
|
Operating Temperature&Humidity
|
Charging: 0ºC-45ºC;discharging:-20ºC-60ºCLower than85%RH
|
|
|
13
|
Storage Temperature&Humidity
|
-5ºC--30ºC,not higher than 45ºCLower than85%RH
|
|
|
14
|
Max shape size(mm)
|
Diameter(φ):18.0mmHeight(H):65.0mm
|
|
|
15
|
Weight
|
around 45g
|
