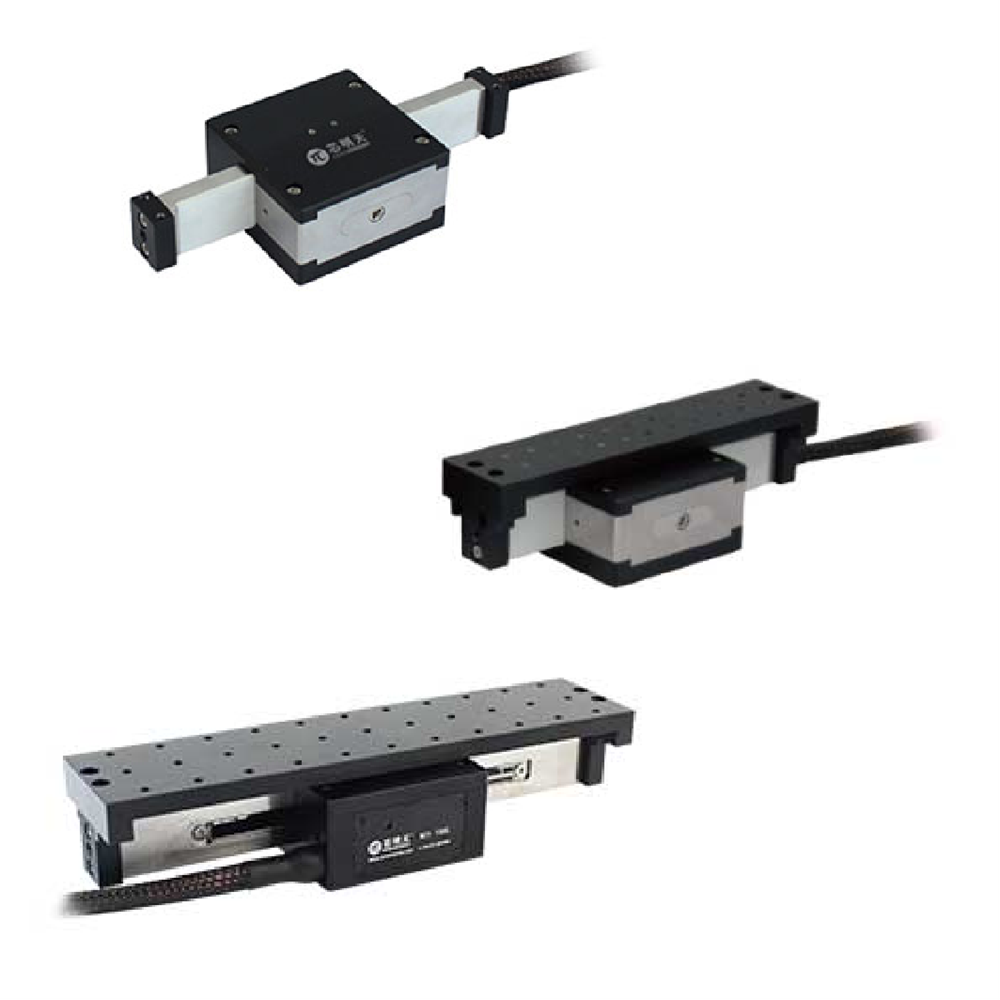

P11 piezoelectric nanopositioning stages
Posting date : Dec 18, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Detailed Description
  • Small volume
  • Large  capacity
  • Quick  response
  • X / Z / XY / XZ / XYZ

Parameters:

Type

P11.X100S

P11.X100K

P11.Z100S

P11.Z100K

P11.X200S

P11.X200K

P11.Z200S

P11.Z200K

P11.Z300S

P11.Z300K

Units
Active axes X Z X Z Z
Sensor SGS/- SGS/- SGS- SGS/- SGS/-
Nominal travel range(0~+120V) 80 80 160 160 240 μm±20%
Max. travel range(-20~+150V) 110 110 210 210 320 μm±20%
Resolution 7/4 7/4 7/4 7/4 7/4 7/4 nm
Closed-loop linearity 0.2/- 0.2/- 0.2/- 0.2/- 0.2/- %F.S.
Repeatability 0.05/- 0.05/- 0.05/- 0.05/- 0.05/- %F.S.
Unloaded response frequency 200 200 150 150 120 Hz±20%
Max load capacity 600 600 500 500 400 g
El.capacitance 1.8 1.8 3.6 3.6 5.4 μF±20%
Material steel/aluminum steel/aluminum steel/aluminum steel/aluminum steel/aluminum
Weight 80 80 120 120 160 g±5%
Cable length 1.5 1.5 1.5 1.5 1.5 m±10mm





Type

P11.XY100S

P11.XY100K

P11.XZ100S

P11.XZ100K

P11.X200Z100S

P11.X200Z100K

P11.X100Z200S

P11.X100Z200K

Units
Active axes XY XZ XZ XZ
Sensor SGS/- SGS/- SGS- SGS/-
Nominal travel range(0~+120V) 80 80 X160 Z80 X160 Z80 μm±20%
Max. travel range(-20~+150V) 110 110 X210 Z110 X110 Z210 μm±20%
Resolution 7/4 7/4 7/4 7/4 nm
Closed-loop linearity 0.2/- 0.2/- 0.2/- 0.2/- %F.S.
Repeatability 0.05/- 0.05/- 0.05/- 0.05/- %F.S.
Unloaded response frequency 150 150 X120 Z200 X200 Z150 Hz±20%
Max load capacity 500 500 400 400 g
El.capacitance 1.8 1.8 X3.6 Z1.8 X3.6 Z1.8 μF±20%
Material steel/aluminum steel/aluminum steel/aluminum steel/aluminum
Weight 120 120 120 120 g±5%
Cable length 1.5 1.5 1.5 1.5 m±10mm







Type

P11.XYZ100S

P11.XYZ100K

Units
Active axes XYZ XYZ
Sensor SGS/- SGS/-
Nominal travel range(0~+120V) 80 80 μm±20%
Max. travel range(-20~+150V) 110 110 μm±20%
Resolution 7 4 nm
Closed-loop linearity 0.2 - %F.S.
Repeatability 0.05 - %F.S.
Unloaded response frequency 200/150/120 200/150/120 Hz±20%
Max load capacity 400 400 g
El.capacitance 1.8 1.8 μF±20%
Material steel/aluminum steel/aluminum
Weight 160 160 g±5%
Cable length 1.5 1.5 m±10mm
