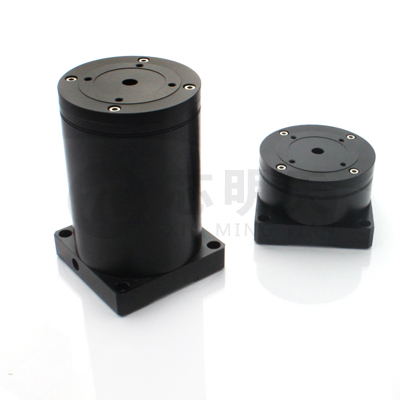

Piezoelectric Tip/Tilt Platforms with heavy loading
Posting date : Dec 18, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Detailed Description

Parameters:

Type P34.T1S P34.T2S P34.T4S

P34.T1K

P34.T2K

P34.T4K

Units
Active axes θX θY θX θY θX θY θX θY
Sensor SGS SGS SGS -
Nominal tilt angle(0~+120V) 1.2 2.5 5 see S mrad±20%
Max.tilt angle(-20~+150V) 1.5 3 6 see S mrad±20%
Tilt resolution 0.2 0.4 0.6 0.1/0.2/0.3 μrad
linearity 0.15 0.2 0.3 - %F.S.
Repeatability 0.05 0.1 0.15 - %F.S.
Unloaded response frequency  θX θY   2 1.4 0.9 see S kHz±20%
El.capacitance 3.6 7.2 14.5 see S μF±20%
Material Al Al Al Al
Weight 0.2 0.4 0.8 see S kg±5%
Cable length 1.5 1.5 1.5 1.5 m±10mm
