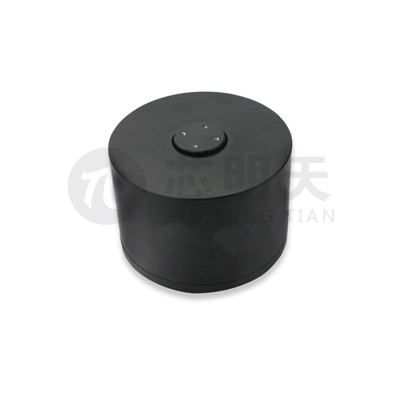

Piezoelectric Tip/Tilt Platforms with large stroke
Posting date : Dec 18, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Detailed Description

  Characteristics:

  • Tilt travel to 50mrad
  • High closed-loop linearity
  • Glass diameter to 50mm
  • Frictionless

Applications:

  • Laser scanning/beam steering, stabilization
  • Imaging stabilization
  • Active optics
  • Imaging
  • Scanning measure



Parameters:

Type P31.T25S P31.T25K Units
Active axes θX θY θX θY
Sensor SGS -
Nominal tilt angle(0~+120V) 20 20 mrad±20%
Max. tilt angle(-20~+150V) 25 25 mrad±20%
Tilt resolution 2 1 μrad
linearity 0.5 - %F.S.
Repeatability 0.2 - %F.S.
Unloaded response frequency  θX θY 500 500 Hz±20%
El.capacitance 7.2 7.2 μF±20%
Material Al&Steel Al&Steel
Weight 0.7 0.7 kg±5%
Cable length 1.5 1.5 m±10mm
