Crimp on Male CCTV BNC Connector for Coaxial Cable
Posting date : Oct 12, 2016
Membership
Free Member Scince Oct 12, 2016
FOB Price
0.09
Min. Order Quantity
2000
Supply Abillity
500000 per piece
Port
shanghai
Payment Terms
T/T, Western Union
Package
100pcs/PP bag
Keyword :
Category
Contact
Icy
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
chinasky
Model Number
CT5045
HS-CODE
8544-49
Package & Delivery Lead Time
Package
100pcs/PP bag
Delivery Lead Time
5-12 working days
Detailed Description
Description:

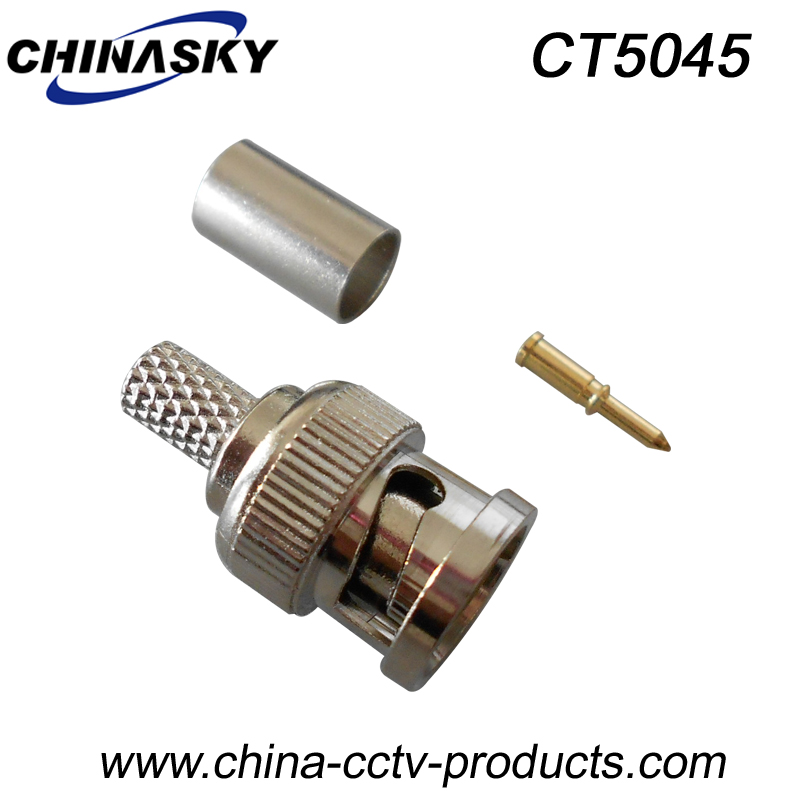

BNC Connector: BNC Male Crimp on Connector, 3 pieces
Two-step ferrule with strain relief crimp
Material:
Body-zinc alloy, nickel plated
Ring-copper, nickel plated
Center pin-copper, gold plated
Net Weight: 6g/piece

Features:
Crimp on Male CCTV BNC Connector for Coaxial Cable (CT5045)
Body
zinc alloy, nickel plated
Ring
copper, nickel plated
Center pin
copper, gold plated
Insulation resistance
5000MΩ
Character impedance
BNC-50Ω; Terminal block-100Ω
Frequency range
0~3GHZ
Net Weight
6g/piece


Application:
CCTV Accessories, cctv system, cctv Security, cctv coaxial cable installation, CCTV surveillance accessories, cctv coaxial cable
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
