Slip Ring with Flange - 22mm Diameter, 12 Wires, Max 240V @ 2A
Posting date : Aug 08, 2016
Membership
Free Member Scince Jun 22, 2015
FOB Price
USD25
Min. Order Quantity
1 piece
Supply Abillity
20000/ month
Port
Shenzhen
Payment Terms
T/T, Paypal, Western Union
Package
Express Packing
Keyword :
Category
Contact
Alex
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
COSMAU
Model Number
COS22-12
HS-CODE
8542-31
Package & Delivery Lead Time
Package
Express Packing
Delivery Lead Time
5~25 days
Detailed Description

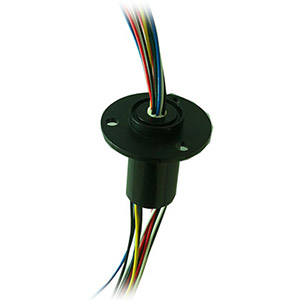

Our economical, slip ring capsule family allows tremendous flexibility in dealing with systems size requirements when larger versions are not an option. Capsules with up to 56 contacts are available.Inside the plastic tube is a gold plated slip ring for 12 wires. There are 12 color coded wire sets made of 28 AWG and no matter how you twist the assembly, they will remain in continuity. Each of the wire sets can carry up to 2A at up to 240VAC or 240VDC. There's a 44mm (1.7") diameter flange with mounting holes to make it easy to attach or you can cut it off with a hacksaw and drill/machine as you wish it seems to just be ABS plastic. CCTV Security CamerasRoboticsCMM MachinesPoint of sale displaysMedical Equipment
OD 22mm Noise 1mΩ min
Number of circuits 2~36 Contact Material Gold-Gold
Ambient Temperature -20~+60 Length 19~57mm
Operating Speed 250rpm CE certificate YES
Current Rating 2A/ring Material RoHS compliant
Lead Wire Length Standard 250mm Mechanical vibration MIL-SID-810E
Lead Size AWG28 Teflon® Work Humidity 10% to 85% RH
Insulation Resistance 500MΩ  500 VDC Housing material Plastic
More about slip ring details, please search"arslipring" in google
