skew rolling mill for steel balls
Posting date : Jul 06, 2016
Membership
Free Member Scince Jul 05, 2016
FOB Price
1000-10000 USD per set
Min. Order Quantity
1 set
Supply Abillity
100 sets per year
Port
TIANJIN
Payment Terms
T/T,LC
Package
Metal frame and metal sheet
Keyword :
Category
Contact
hailee
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Forever
HS-CODE
8514-
Package & Delivery Lead Time
Package
Metal frame and metal sheet
Delivery Lead Time
20 days after the deposit
Detailed Description
Product name: skew rolling mill for steel balls

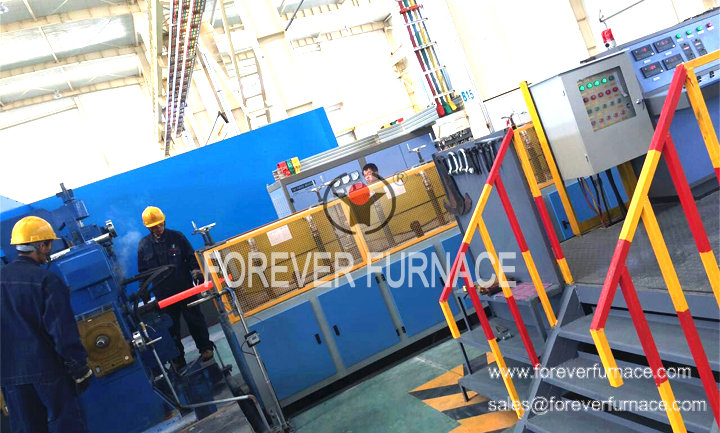

Process description for skew rolling mill for steel balls

1)Billet  preparation:

All ball billet for 6m hot rolled bar.According to the size and type of storage in different storage rack.Define a unique batch number for each batch.Sampling inspection for each batch of stock.According to the chemical composition of the test blank, as well as the steel ball hardness requirements.

2)Heating:
Blank lifted by crane to the loading platform, the feed rollers automatically feed into the intermediate frequency furnace heated to the desired temperature rolling

3)Rolling
According to the material composition and the hardness of steel ball, the rolling temperature is established, and the average rolling temperature is about 1000~1100. The reddest of steel bars through the roller automatically sent to the ball mill, in two with special helical hole between the rolls rotate and move forward, and is continuously rolled into a ball.

4)Cooling
Eligible ball rolled into the cooling conveyor

5)Hardening:
After the ball through the conveyor naturally cooled to a temperature suitable to the Ball separator, go screw quenching tank. Its speed can be adjusted manually via the inverter.

6)  Tempering (tempering)
After the completion of the steel ball, into the heat preservation barrel to temper.

7)  Cooling platform

After the steel ball is tempered, the cooling platform is entered

Contact person:Hailee Ma

Skype ID: forever.furnace
Whatsapp:+86-18932783253
