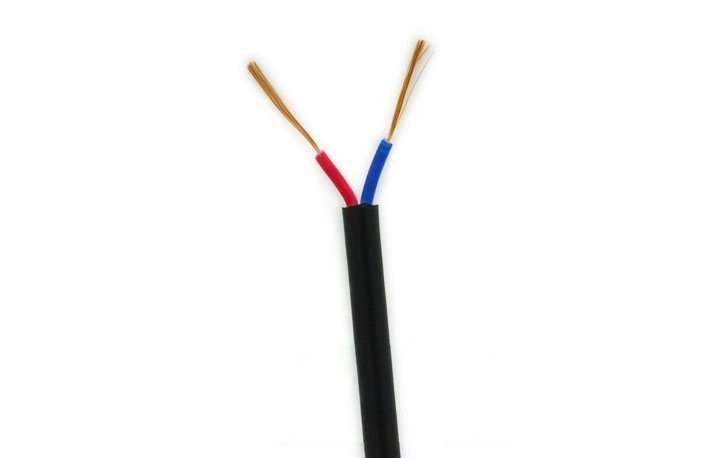

Flexible Cable 300/500V RVV2*1.5sqmm
0 likes
China [CN] Product Name: 300/500V Flexible Cable for Installation
Description:
1, Applications
Working as connecting and control cable under dry or wet indoor situation , especially for kinds of electronic installation of industrial condition . The cable cross section area 0.5mm2 or upper could work as control and connecting cable in machine tool manufacture, whole set equipment , installation , power station , belching and air conditioner installation , For its special flexibility, it could also work in installation or fixation.
2,Construction
Stranded Bare Copper Conductor and PVC Insulated PVC Sheath Electric Power Cable
3,Standard Packing
100m, 500FT, 200m, 1000FT, 500m woodem drum or request.
4, Technical Data
Temperature Range: 70-105℃
Max Working Voltage: 300/500V, 450/750V
Max Current: 1 amp per core
5,Standards
BS4737: Insulated cables, PVC insulated for intruder alarm systems
NEC 725/800: CM / CL2,
6, Specifications:
|
Model No. |
Conductor |
Insualtion |
Jacket |
||||
|
Cores × Nom. Area |
Max. Resistance at 20°C |
Thickness |
Min. Resistance at 70°C |
Thickness |
Min. Dia. |
Max. |
|
|
mm² |
MΩ/km |
mm |
MΩ/km |
mm |
mm |
mm |
|
|
RVV2×0.75 |
2×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6 |
7.6 |
|
RVV2×1.0 |
2×1.0 |
19.5 |
0.6 |
0.01 |
0.8 |
6.4 |
8 |
|
RVV2×1.5 |
2×1.5 |
13.3 |
0.7 |
0.01 |
0.8 |
7.4 |
9 |
|
RVV2×2.5 |
2×2.5 |
7.98 |
0.8 |
0.009 |
1 |
8.9 |
11 |
|
RVV3×0.75 |
3×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6.4 |
8 |
|
RVV3×1.0 |
3×1.0 |
19.5 |
0.6 |
0.01 |
0.8 |
6.8 |
8.4 |
|
RVV3×1.5 |
3×1.5 |
13.3 |
0.7 |
0.01 |
0.9 |
8 |
9.8 |
|
RVV3×2.5 |
3×2.5 |
7.98 |
0.8 |
0.009 |
1 |
9.6 |
12 |
|
RVV4×0.75 |
4×0.75 |
26 |
0.6 |
0.011 |
0.8 |
6.8 |
8.6 |
|
RVV4×1.0 |
4×1.0 |
19.5 |
0.6 |
0.01 |
0.9 |
7.6 |
9.4 |
|
RVV4×1.5 |
4×1.5 |
13.3 |
0.7 |
0.01 |
1 |
9 |
11 |
|
RVV4×2.5 |
4×2.5 |
7.98 |
0.8 |
0.009 |
1.1 |
10.5 |
13 |
|
RVV5×0.75 |
5×0.75 |
26 |
0.6 |
0.011 |
0.9 |
7.4 |
9.6 |
|
RVV5×1.0 |
5×1.0 |
19.5 |
0.6 |
0.01 |
0.9 |
8.3 |
10 |
|
RVV5×1.5 |
5×1.5 |
13.3 |
0.7 |
0.01 |
1.1 |
10 |
12 |
|
RVV5×2.5 |
5×2.5 |
7.98 |
0.8 |
0.009 |
1.2 |
11.5 |
14 |
Color: PVC Sheath: white; PVC Insulation: blue, brown, yellow/greenWorking temperature: 70°C
Length: 100m, other length is available
Packing: heat-shrink film roll, other packing mode, such as wood spool, film wrapping, plastic spool, paper spool, is also available.
Manufacturing Standards: GB/T5023-2009, BS 6005, IEC60227
CE certicate is availabe.
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer, 11 years production experience.
3. OEM/ODM available
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design.
3) Any your idea on cable, packing box are available.
4. High quality, reasonable and competitive price, fast lead time.
5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
6. Faster delivery:
Sample order in stock, and 3-7 days for bulk production.
7. Payment:
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
1. Paking detail
1) Packing Lengths: 100m/roll,200m/roll, 500m/roll, 1000m/roll or other lengths available according to client's request. 2) Inner packing: Plastic film,Wooden reel, plastic reel, and paper reel are available. 3) Outer packing: Carton,Sack bag or as request
4) Other packing available according to client's request.
2. Shipping Details:
15-25 working days
Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way
