UL3122 | Global Trade leader ecrobot

Product

UL3122

Posting date : Jul 19, 2016

Click enlarge Image

Membership

Free Member Scince May 31, 2016

FOB Price

negociate

Min. Order Quantity

1KM

Supply Abillity

1000KM

Port

Tianjin

Payment Terms

Paypal

Package

carton

Keyword :

high temperature

Category

MACHINERY & ELECTRICAL | Electrical | Insulated

Contact

Helen

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Sanew

HS-CODE

8544-

Package & Delivery Lead Time

Package

carton

Delivery Lead Time

2 or 3 weeks after payment

Detailed Description

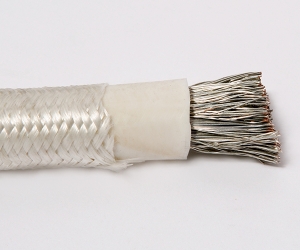

Product Description:Silicone rubber fiberglass wire braided, high temperatureUL AWM 3122 cable,UL file number: E214859.Conductor: Single or stranded conductor 26-12 AWG tinned copper, insulated with silicone rubber.Rated temperature: -60 ~ +200 ℃, rated voltage: 300 V.Standard: UL758, UL1581 and CSA C22.2 NO.210.2, through the UL VW-1 vertical flame test, and CSA PT1; compliance with EU RoHS environmental directive, passed by the SGS test.Standard thickness, easy to peel, easy to cut. Tolerance of ± 0.11mm.

Application:Widely used in aviation, metallurgy and petroleum, electronics, instrumentation, home appliances, transformers and electrical motor

Structure Size

Conductor				Insulation			Max Resistance 20℃ Ω/Km
Spec AWG	Area mm2	NO/D	Diameter mm	Nominal Thickness mm	Nominal Diameter mm	Max Diameter mm	Max Resistance 20℃ Ω/Km
16-1	1.374	7/0.5	1.50	0.4	2.60	2.70	14.60
-2	1.230	19/0.287	1.50	0.4	2.60	2.70	14.60
-3	1.320	26/0.254	1.50	0.4	2.60	2.70	14.60
18-1	0.810	16/0.254	1.18	0.4	2.28	2.38	23.20
-2	0.762	19/0.226	1.18	0.4	2.28	2.38	23.2
-3	0.824	41/0.16	1.18	0.4	2.28	2.38	23.20
20-1	0.453	7/0.287	0.9	0.4	2.05	2.15	26.7
-2	0.507	10/0.254	0.95	0.4	2.05	2.15	36.70
-3	0.534	21/0.18	0.95	0.4	2.05	2.15	36.70
22-1	0.355	7/0.254	0.76	0.4	1.86	1.96	59.40
-2	0.342	17/0.16	0.70	0.4	1.86	1.96	59.40
24	0.221	11/0.16	0.61	0.4	1.70	1.80	94.20
26	0.140	7/0.16	0.50	0.4	1.60	1.70	150.00
