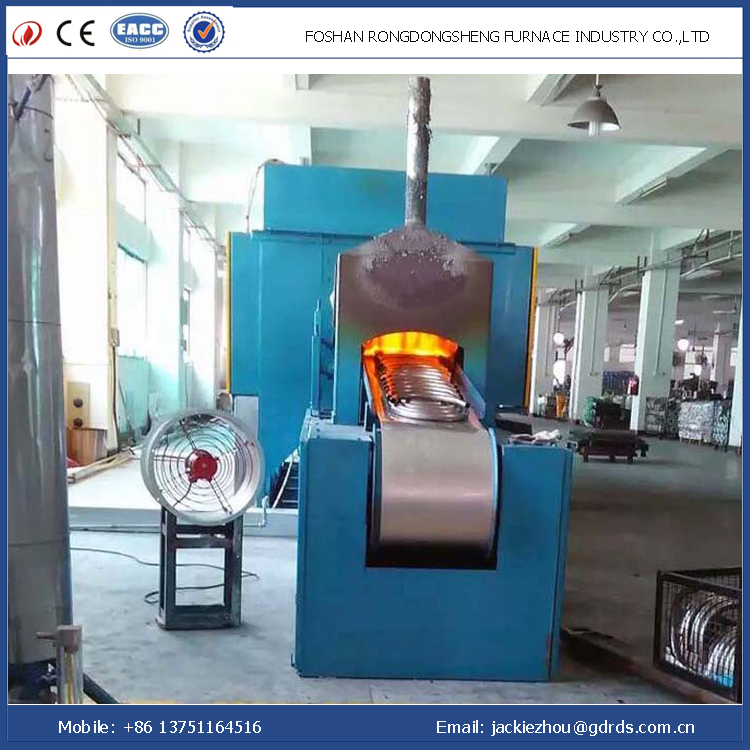

Continuous electric metal bright annealing furnace

Product

Posting date : May 12, 2016

Click enlarge Image

Membership

Free Member Scince May 12, 2016

FOB Price

10000-80000 per set

Min. Order Quantity

1 set

Supply Abillity

50 sets per month

Port

foshan

Payment Terms

T/T,L/C,Western Union

Package

Standard export package

Keyword :

annealing furnace

Category

MACHINERY & ELECTRICAL | Electrical | Industrial

Contact

Jackie Zhou

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Rongdongsheng

Model Number

RC16-30

HS-CODE

8514-

Package & Delivery Lead Time

Package

Standard export package

Delivery Lead Time

generally 40-60 days

Detailed Description

1.Introduction of the furnace:

Applies in continuous production of bright quenching of Martensite stainless steel and bright annealing (solid solution) of Austenitic stainless steel, and intermediate recrystallization annealing and final annealing of various copper materials and copper alloy as well as stress relief treatment, etc, being easy in operation and without industrial pollution.

2.Consist of the Furnace:

This device is mainly composed of transmission system, heating system, cooling system, control system, and ammonia decomposition gas supply system.

3.Application of the Furnace:

Wide scope of application: It is applicable for continuous production of bright quenching and bright annealing (solid solution) of stainless steel, intermediate recrystallization annealing and final annealing of various copper materials and copper alloy as well as stress relief treatment. With strip unwinding and rewinding mechanism, it can be applied in bright annealing in cold rolling industry of metal strips.

4.Furnace Main Feature:

Newest design,Saving more energy and high efficiency,Stable production quality,Easy to use,Control by electric.

The Furnace adopted heat resistance stainless steel belt for transmmiting workpiece,had protective atmosphere to prevent workpiece from being oxidated, and make sure the results surface bright,Non-oxidation,high consistency.

The hearth is made of high temperature resistant nickel alloy,to better control the wokrpiece processing temperature and prolong the hearth service life.

5.Technical Parameters of the furnace:

Model	Rated Power (kw)	Heating area number	Hearth Size			Effective Cooling Length(mm)	Output(kg/h)	Ammonia Decomposition Furnace Power(kw)	Decomposition Capacity(m³/h)
Model	Rated Power (kw)	Heating area number	L(mm)	W(mm)	H(mm)	Effective Cooling Length(mm)	Output(kg/h)	Ammonia Decomposition Furnace Power(kw)	Decomposition Capacity(m³/h)
Rc5-7	15	1	1300	70	40	2500	15	5.5	2.8
Rc6-15	20	3	1600	155	40	3500	22	7	3.8
Rc6-20	21	3	1600	200	50	3500	28	10	4.5
Rc8-15	24	3	2000	155	50	4800	35	7	3.8
Rc8-20	30	3	2000	200	60	4800	40	10	4.5
Rc12-15	45	3	2600	155	50	6800	50	7	3.8
Rc12-20	45	3	2600	200	60	6900	52	10	4.5
Rc16-20	60	4	3500	200	60	9000	80	10	4.5
Rc16-25	70	4	3500	250	80	9000	100	10	4.8
Rc16-30	85	4	3500	300	80	9000	120	10	5
