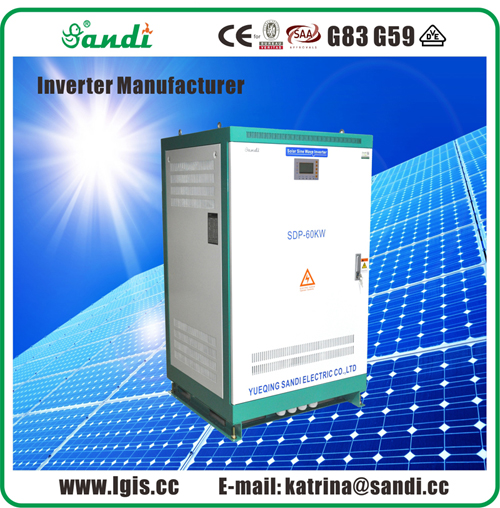

60kw Solar Inverter for off grid solar system (SDP-60KW)

Product

Posting date : Mar 01, 2016

Click enlarge Image

Membership

Free Member Scince Aug 16, 2014

FOB Price

20000

Min. Order Quantity

1PC

Supply Abillity

2000PCS

Port

Ningbo, Shanghai

Payment Terms

T/T

Package

Standard export wooden case packing

Keyword :

solar inverter

Category

MACHINERY & ELECTRICAL | Electrical | Electric g | Electric r

Contact

Katrina Yi

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

SANDI

Model Number

SDP-60KW

HS-CODE

8502-40

Package & Delivery Lead Time

Package

Standard export wooden case packing

Delivery Lead Time

10 days

Specifications

Type of Certification

CE for Inverter

Reference no.

POCE12010916CE

Name.

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00

Detailed Description

60kw Solar Inverter for off grid solar system (SDP-60KW)

Our SDP series Off Grid Pure sine wave inverter is one of the most advanced DC to AC conversion products in the world, it is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine and other renewable energy systems and etc, can supply power and provide guarantee effectively for the areas with traffic inconveniences, in the mountains, pastoral, border, island and other areas without electricity. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is high efficiency and low no-load loss, and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.

Technical Features:

Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.
Intelligentized, modularized, simple structure design easy to maintenance.
Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.
The output frequency can be setting via LCD panel, it’s very convenient for customer.
The output voltage can be set between -40 % to +20 % of rated voltage. And the output voltage is very accuracy ±1%.
The DC input voltage range can be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be setting via the LCD panel.
Pure sine wave output. With good dynamic response less than 50MS, waveform distortion rate smaller, higher conversion efficiency and stable output voltage.
Low frequency transformer which ensure the DC busbar and AC busbar are completely isolated to avoid interference.
Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 100-400V or 400-800V, suitable for solar/wind system without backup batteries, it can save many cost and maximization use the solar/wind energy.
Using SVPWM space vector algorithms, high conversion efficiency, high instantaneous power and low losses conversion efficiency up to 94%.
Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
European CE (EMC, LVD) certificate, accredited by Australian CEC, ERAC energy network.

[Optional]

RS485 remote monitoring;
Can add AC bypass complementary function;

Technical Parameters

Model		SDP-50KW	SDP-60KW
Isolation mode		Low Frequency Transformer
DC Input	Rated voltage (Vdc)	360V
	Rated current（A）	139A	167A
AC Output	Rated output power	50KW	60KW
	Output waveform	Pure Sine Wave
	Rated Voltage	380VAC±3%	380VAC±3%
	Phases	3 phase 4 wire	3 phase 4 wire
	Rated current（A）	76A (phase current)	91A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	220/230/240/380/400/415V/440/480AC optional
	Power Factor（PF）	0.95
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate (THD)	<3%（Linear load）
	Dynamic Response (0 to 100% load)	5%，≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20（indoor）
	Working Altitude（m）	≤2000
	Working temperature	-25~+55℃
	relative humidity	0~90%，non-condensing
Mechanical dimension	Depth* Width * Height	800x850x1200mm
	Weight （Kg）	420Kg		450Kg
