Temperature Humidity 3G Recorder | Global Trade leader ecrobot

Product

Temperature Humidity 3G Recorder

Posting date : May 21, 2015

Click enlarge Image

Membership

Free Member Scince May 20, 2015

FOB Price

35~50

Min. Order Quantity

1 Set

Supply Abillity

1000 Set

Port

hongkong

Payment Terms

PayPAL

Package

Export Carton

Keyword :

Multipoint 3G Networ

Category

MACHINERY & ELECTRICAL | Electrical | Electronic | Electronic

Contact

Antonio

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

Hong Kong [HK]

Brand Name

EASEMIND

Model Number

GSX8-HV-3G

HS-CODE

8542-31

Package & Delivery Lead Time

Package

Export Carton

Detailed Description

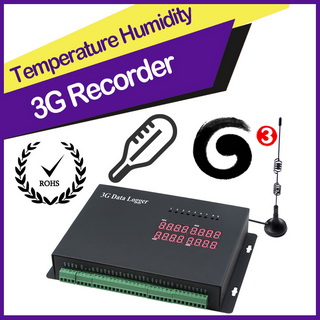

[detail]It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 3G mobile network.3G Data Logger provides faster wireless connection in a more secure and reliable 3G mobile network.Its built-in UPS feature providing user alert of AC power loss.During power loss, operation is backed up by internal rechargeable battery.

Overview:* 8 Temperature Sensors (max.)* 1 Humidity Sensor* 8 Analog Channels (max.)* 10 Digital Inputs* 4 Pulse Channels* 4 Relay Outputs* RS485 Data In* 32GB SD memory card slot

Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.Progammable data logging interval starts from 1 minute up to 24 hours.

Features1) Real Time 3G Data Upload2) Integrated 16 bit MCU & Siemens 3G Module3) Programmable data input type & alert hi/low4) Programmable Data Upload Interval & Logging Interval5) Easy setup via USB port by PC software6) Remote Setup over 3G mobile network7) RS485 Port support data capturing in Modbus protocol8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission9) Flexible AC/DC power with internal battery backup

Free Software:[1] Setup software is bundled for routine configuration via USB port locally[2] Centre software is also provided for receiving data via 3G mobile network.[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display

[Applications]* water pipes network real time monitoring - water in and out temperature* oil/gas pipes network, pump stations* underground water level real time monitoring* environmental monitoring system - wind/temperature/humidity/CO2/pressure* remote Industrial equipment monitoring* rural equipment monitoring e.g. power plant, antenna tower* measuring equipment data capture and report via 3G mobile network* food chain, storage, transport industry, building management* agricultural, farming, laboratory, medical industry

GSX8-HV-3G is a data logger with multiple channels. It provides data capturing and transmission over 3G network.
