Features:

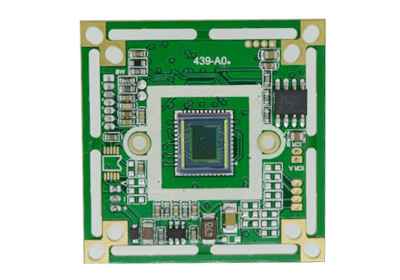

Ccd camera board with auto iris IRIS on board OSD / UTC function;IR sync color to black / BW function, lower noise at night for ccd camera board;Clear picture quality, better color reproduction, low illumination;Low power consumption, wide voltage power supply design of this ccd camera board, the voltage range DC9-18V;The ccd camera board use immersion gold process PCB, anti-oxidation, anti-corrosion;Built-in PWM function, intelligent adjust brightness infrared light, the perfect solution to the problem overexposed face at night;Without IR-CUT for this ccd camera board, perfect color reproduction, to address the high cost of IR-CUT, the high failure rate of problem
Description
Imaging Device 1/3 "HDIS of ccd camera boardEffective Pixels PAL: 976 * 582, NTSC: 976 * 494,System standard PAL / NTSC for this ccd camera boardHorizontal Resolution 800TVLSNR> 50db for this ccd camera boardMinimum illumination 0.01LUXThe ccd camera board back light Compensation (BLC) Auto / AUTOAuto Electronic Shutter (AES) AUTO / 1/50 (1/60) -1 / 100,000secAuto White Balance (AWB) AUTOCDS IN IR sync color to black trigger 1.6V-8V inputSynchronization Internal way for this ccd camera boardVideo output CVBS / 1.0Vp-p / 75 ouOperating voltage DC12V / 80mA for this ccd camera boardWorking environment of the ccd camera board is -20 to 60 degree
