China [CN] Servo Motor Pulling Mesh Line Wire Manual Feed Rebar Wire Mesh Welding Machine
Rebar Wire Mesh Welding Machine Introduction:
The Rebar Wire Mesh Welding Machine also called reinforcing mesh panel welding machine. The machine is used to produce reinforcing mesh panel. The max weld wire diameter 9mm. The minmium wire diameetr is 4mm. Welding mesh width from 1000mm to 3000mm. Max mesh length up to 12m. The wire mesh welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.
Rebar Wire Mesh Welding Machine Features:

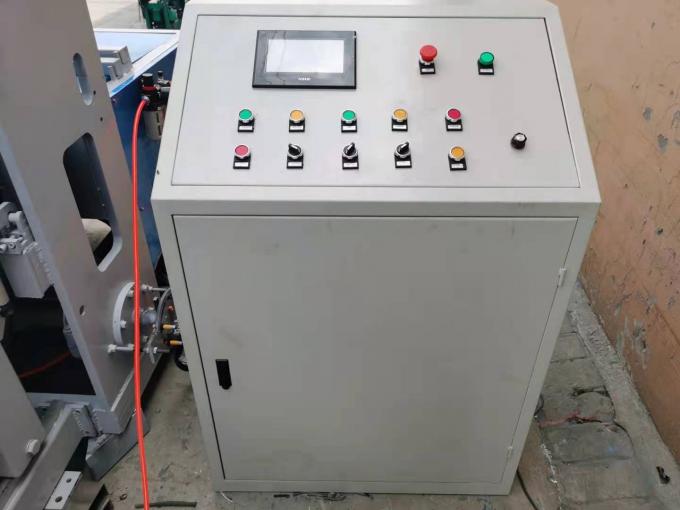

1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)
2. The line wires should be inserted into slot tunnels (cast iron material), suitable for different wire diameter.
3. The cross wires are fed from cross wire feeder, controlled by step motor.
4. Pure red copper (upper) and chromised bronze (lower), durable.
5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.
6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.
7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.
9. The line wires and cross wires should be pre-straightened and pre-cut.
10. The line wires are inserted into the slot tunnels manually.
Rebar Wire Mesh Welding Machine Technical Parameters:
| Model | DX-GWC-2000D | DX-GWC-2500D | DX-GWC-3000D |
| Wire diameter | 4-9mm | 4-9mm | 4-9mm |
| Welding mesh width | 2000mm | 2500mm | 3000mm |
| Line wire distance | 50--300mm | 50--300mm | 50--300mm |
| Cross wire distance | 50-300mm | 50-300mm | 50-300mm |
| Mesh length | Max 12m | Max 12m | Max 12m |
| Line wire feeding way | Pre-straighten pre-cut | Pre-straighten pre-cut | Pre-straighten pre-cut |
| Welding speed | 50-75 times per min | 50-75 times per min | 50-60 times per min |
| Welding electrodes | 40PCS | 48PCS | 60PCS |
| Welding transformer | 160KVA*7PCS | 160KVA*8PCS | 160KVA*10PCS |
| Main motor | 7.5KW | 7.5KW | 11KW |
| Pulling mesh system | By servo motor | By servo motor | By servo motor |
| Control system | PLC and touch screen | PLC and touch screen | PLC and touch screen |
| Production capacity | 15-20 tons in 10 hours | 15-20 tons in 10 hours | 15-20 tons in 10 hours |
| Power consumption | 10-12kw/h | 10-12kw/h | 12-15kw/h |
| Weight | 5.8T | 6.5T | 7.3T |
| Dimension | 8*2.7*1.8m | 8*3.2*1.8m | 8*3.8*1.8m |
Rebar Wire Mesh Welding Machine Applications:
Used for all kinds of reinforced concrete structures such as Bridges, expressways, tunnel backs, high-rise floors, subway culverts, power plant projects, dam foundations, ports, docks, river embankment protection walls, airport runways.

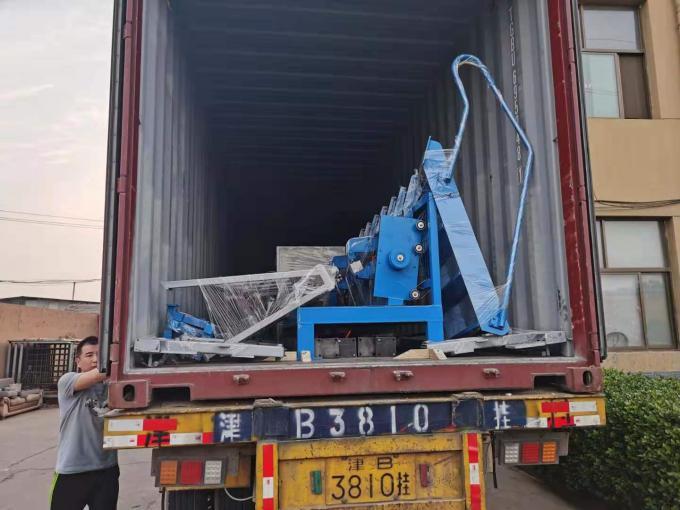

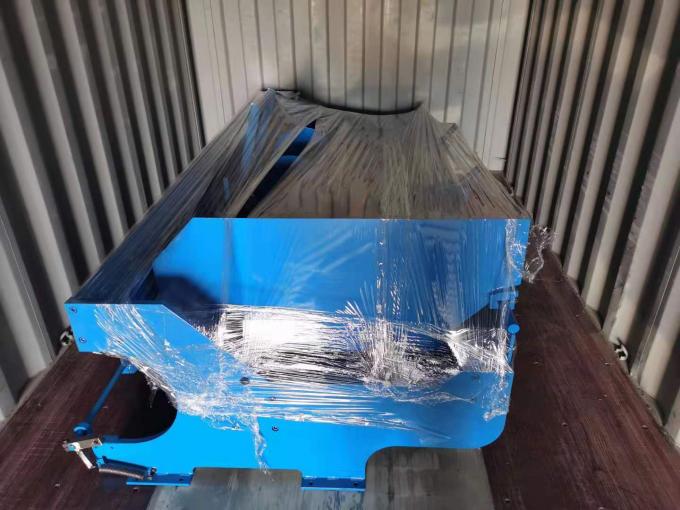

Rebar Wire Mesh Welding Machine Packing:

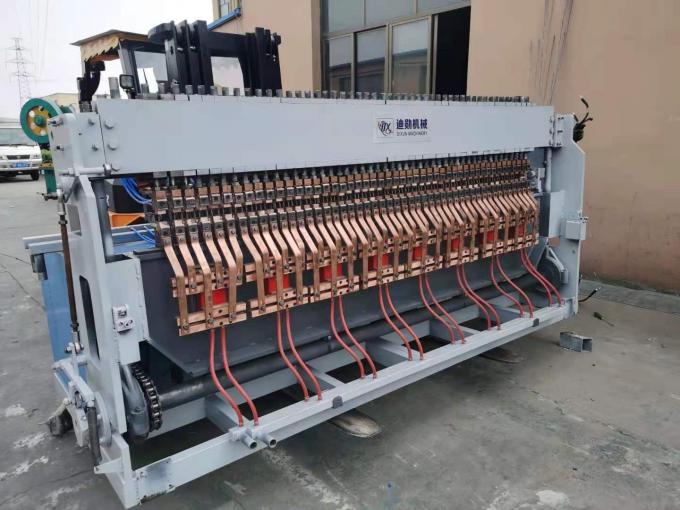

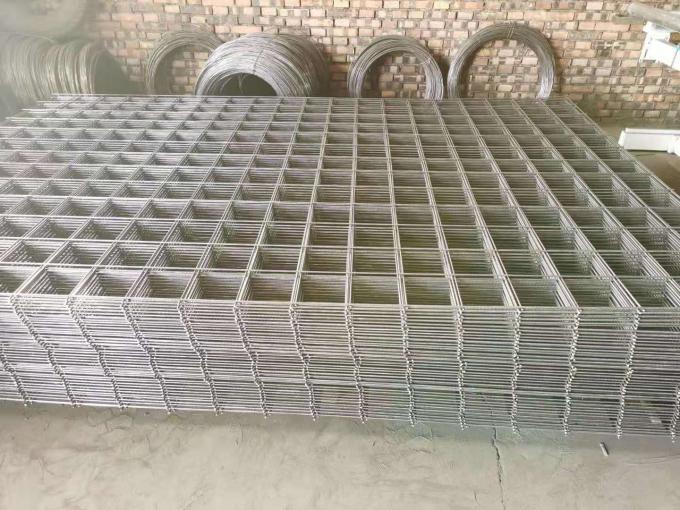

Rebar Wire Mesh Welding Machine Photos:
