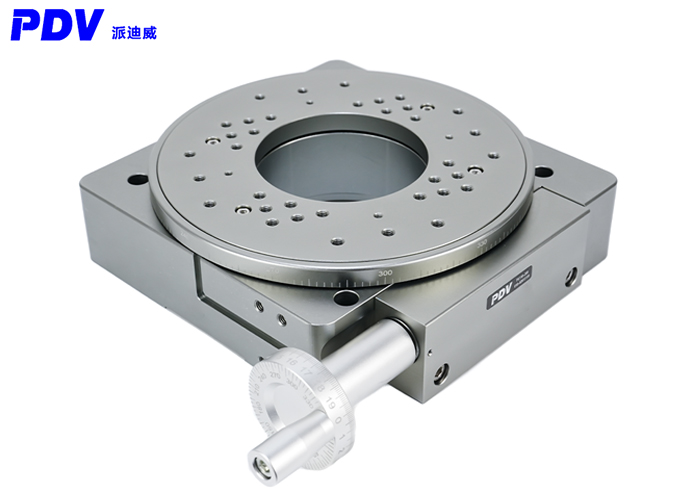

Manual rotating worm gear displacement table Positioning table index disc
Posting date : Sep 23, 2024
Membership
Free Member Scince Sep 23, 2024
FOB Price
****
Min. Order Quantity
1
Supply Abillity
**
Port
China
Payment Terms
paypal
Package
****
Keyword :
Category
Contact
Rebecca Zheng
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
PDV
HS-CODE
8413-60
Package & Delivery Lead Time
Package
****
Detailed Description

Specification:

Product parameters:

Structure descriptionProduct modelPSD110-200(Manual)
Angular range360 °
Table sizePhi 200 mm
Gear ratio180:1
Driving mechanismWorm gear and worm   mechanism
Guide formbearing
Bulk materialAluminium alloy
Surface treatmentAnodized black
Central load55kg
weight7.9kg
Precision descriptionResolution0.01°=36''(No   segmentation)
    0.0005°=1.8''(20segmentation)
Repeated positioning accuracy0.005°=18''
Positioning accuracy (optional grating)0.01°=36''
End jump accuracy15μ
flyback0.005°=18”
partiality20μ
Drop step0.005°=18”
parallelism100μ
