Gravity Mechanical Valve 1500ml Fruit Juice Filling Machine
0 likes
China [CN] Gravity Mechanical Valve 1500ml Fruit Juice Filling Machine
Gravity Mechanica Filling Valve Juice Filling Machine

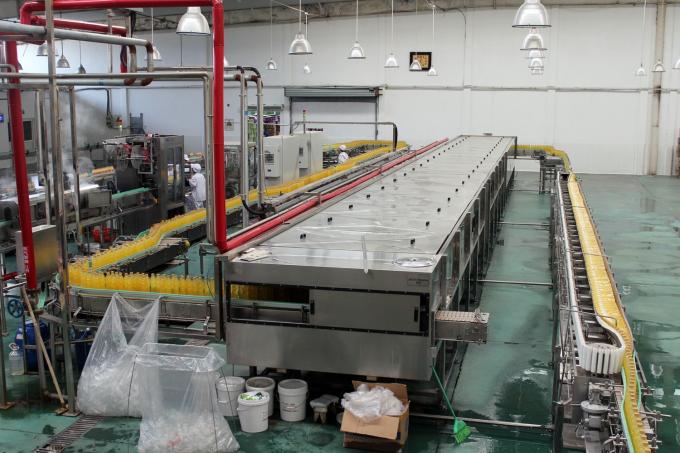

Our juice and tea beverage production line is designed and manufactured to fill juice and tea beverages into PET bottles. In addition, it can also be used to fill non-carbonated liquids such as water. The production capacity of the juice and tea beverage production line is 6000 to 24000 bottles/hour. The beverage production line adopts PLC, human-machine interface and frequency conversion speed regulation, and is equipped with a filling temperature control system and a CIP cleaning system. In addition, the use of the low vacuum filling method enables the production line to meet the technical requirements of various fruit juices and tea beverages.
Fully enclosed combined trinity high temperature filling unit. The whole production line is controlled by PLC, MMI, variable frequency speed regulation, equipped with a filling temperature control system and CIP self-cleaning system, and a low vacuum filling method, which can fully meet the technical requirements of various juices and tea beverages.
Specifications of Bottled Water Filling Machine
Model | Number of Bottle Rinsing Clip | Number of Filling Valve | Number of Capping Head | Capacity (BPH) | Bottle Size | Outline Dimensions (mm) | Weight (Kg) | Remark | ||
Diameter (mm) | Height (mm) | Volume (ml) | ||||||||
DGC06 | 18 | 18 | 6 | 5000-6000 | Φ60-Φ96 | 180-315 | 350-1500 | 2480x1980x2600 | 4000 | All-in-one Type |
DGC08 | 24 | 24 | 8 | 6000-10000 | Φ60-Φ96 | 180-315 | 350-1500 | 2800x2400 x2600 | 6000 | All-in-one Type |
DGC10 | 32 | 32 | 10 | 10000-14000 | Φ60-Φ96 | 180-315 | 350-1500 | 3300x3000 x2700 | 7200 | All-in-one Type |
DGC12 | 40 | 40 | 12 | 14000-18000 | Φ60-Φ96 | 180-315 | 350-1500 | 3900x3180 x2700 | 9000 | All-in-one Type |
DGC15 | 50 | 50 | 15 | 18000-20000 | Φ60-Φ96 | 180-315 | 350-1500 | 5300x4200 x2900 | 10000 | All-in-one Type |
DGC15 | 60 | 60 | 15 | 20000-24000 | Φ60-Φ96 | 180-315 | 350-1500 | 5700x4600 x2900 | 12000 | All-in-one Type |
DGC18 | 72 | 72 | 18 | 22000-28000 | Φ60-Φ96 | 180-315 | 350-1500 | 6600x5100 x2900 | 15000 | All-in-one Type |
Features
Adopting low vacuum pressure filling method, our juice, tea drink production line achieves high filling speed, high filling precision and great filling quality at the same time.
Bottles are fed by the air conveyor and transported by clipping the bottle neck and put out by normal conveyor chain. Hence, it is easy and convenient to change bottle size.
The use of "PICK, PLACE" capping system ensures reliable capping, the adoption of magnetic torque structure makes it convenient to adjust the torque.
About us
BestCrown has been engaged in the research and manufacture of drinking machinery since 1954. Our juice production line and tea drink production line, which are our popular products, can also be used as pure water production line, mineral water production line or coffee production line. As an experienced juice, tea drink production line manufacturer in China, we also offer beer production line, can production line, and aseptic cold filling line etc. to meet various needs of our customers. Because of their good quality and high efficiency, our products are CE certified and are extensively used by customers from many countries, such as the USA, Canada, Britain, South Africa, Congo, Lebanon, among others.
