HEYI SENSORI ROGOWSKI RFC 1-10KA Bobine Rogowski with BNC/ integrator
Posting date : Aug 24, 2017
Membership
Free Member Scince Aug 22, 2017
FOB Price
$61.3 - $180.00
Min. Order Quantity
3pcs
Supply Abillity
100000pcs/month
Port
ShangHai/NingBo
Payment Terms
T/T, Paypal, WesternUnion
Package
Export Carton
Keyword :
rogowski
Category
MACHINERY & ELECTRICAL | Electrical | Electrical | Electrical
Contact
Jake Gao
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
HEYI
Model Number
FRC040, FRC080, FRC100
HS-CODE
8504-31
Package & Delivery Lead Time
Package
Export Carton

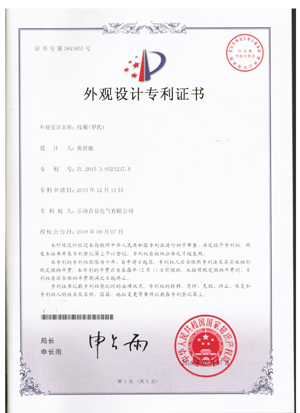

Patent
No. of Patent
ZL 2015 3 0521237.X
Patent Name
Appearance patent
Type of Patent
Appearance patent
Start Date
2016-09-07

Detailed Description
FRC Series Flexible Rogowski Coil
FRC is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. FRC rogowski coils are available in different sizes and can be supplied according to customer’s design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight. Due to its specific features, FRC flexible rogowski coils is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.


FEATURES:

  • Suitable to measure currents from A to hundreds of kA.
  • High linearity.
  • The absence of magnetic core grants a wide frequency response to be suitable for measurement of harmonic content and transients.
  • Very useful with large size or awkward shaped conductors or in places with limited access.
  • Non-intrusive, no power drawn from the main.
  • Not damaged by large overloads.
  • There is no danger from open-circuited secondary.

 APPLICATIONS:
  • Measuring devices, lab instrumentation
  • Harmonics and transients monitoring
  • Very high current monitoring
  • Power quality monitoring
  • Power control systems
  • DC ripple measurement
  • Electric furnace
  • Relay protection




CERTIFICATES: CE & Rohs




SPECIFICATION:
TRANSDUCER
Coil length:
210mm/350mm/420mm/510mm/600mm/800mm
Inner diameter:
60mm/103mm/125mm/155mm/180mm/245mm (±10%)
Coil cross section:
6.5±0.2 mm/8±0.2 mm/10±0.2 mm
Fastening:
bayonetholder
Material:
thermoplastic UL94-V0
Color:
coil: black, red, yellow, blue (other color could be customized)
closing unit: black
CONNECTION CABLE

Type:
cable  (with 3-wire terminal)


cable + BNC/Oscilloscope Interface

Length:
3000 mm (standard), other length could be customized.

Material:
Xy23/0.1  丅s/2C＋A＋B

Color:
black



ELECTRICAL CHARACTERISTICS

Output level (RMS):
40mV/1000A @50Hz


80mV/1000A @50Hz


100mV/1000A @50Hz

Accuracy:
class 1.0 (coil must be calibrated with amplifier/integrator load impedance)

Linearity (10% to 100% of range):
±0.1% of reading

Frequency range/Bandwidth:
approx 10Hz to 10MHz

Phase shift:
90°

Conductor position sensitivity:
±2% Maximum

Influence of external field:
±2% Maximum



ENVIRONMENTAL CONDITIONS

Operating temperature:
from -20℃ to +75℃

Storage temperature:
from -30℃ to +75℃ (suggest normal temperature )



Safety

Working voltage(max):
1000Vrms CATIII

600Vrms CATIV

Hipot test
7400Vrms @50/60Hz 1min.





SCHEMATIC DIAGRAM:


CABLE CONNECTION:



MODEL CODE:
Model
Coil length (mm)
Inner diameter (mm)
Output level (RMS)
Coil color
FRC
210 mm
60mm ±10%
40mV/1000A @50Hz
Black, Red, Yellow
FRC
350 mm
103mm ±10%
40mV/1000A @50Hz
Black, Red, Yellow
80mV/1000A @50Hz
Black, Red, Yellow, Blue
FRC
420 mm
125mm ±10%
40mV/1000A @50Hz
Black, Red, Yellow
80mV/1000A @50Hz
Black, Red, Yellow, Blue
100mV/1000A @50Hz
Black, Red, Yellow
FRC
510 mm
155 mm ±10%
80mV/1000A @50Hz
Black, Red, Yellow, Blue
100mV/1000A @50Hz
Black, Red, Yellow
FRC
600 mm
180 mm ±10%
100mV/1000A @50Hz
Black, Red, Yellow
FRC
800 mm
245 mm ±10%
100mV/1000A @50Hz
Black, Red, Yellow



Flexible Rogowski Coil With G1 Integrator
G1 is a USB-sized integrator, could be combined with any model and any size of FRC series rogowski coils to amplify the output signal. It’s essential to equalize and shift by 90° the output signal from the rogowski coils. It consists of an active electronic circuit with negligible offset and a good linearity. Flexible rogowski coils with G1 integrator meets customer requirements for different outputs and allows for more interfacing with more measurement devices.

SPECIFICATION:
ELECTRICAL CHARACTERISTICS
Current range
1A - 10KA
Output level (RMS):
333mV (any volt signal within 3V could be customised)
Accuracy:
class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
Linearity (10% to 100% of range):
±0.1% of reading
Frequency range/Bandwidth:
approx 10Hz to 100KHz
Conductor position sensitivity:
±2% Maximum
Inuence of external field:
±2% Maximum
　
　

G1 INTEGRATOR:

※ When you make the order, please notice what’s the input current and output voltage signal do you require. The output volt could be any one within 3V, like 333mV, 1V, 3V and so on.



Flexible Rogowski Coil With G2 Integrator
G2 is a handheld type integrator, could be combined with any model and any size of FRC series rogowski coils to achieve five current range measurement. It’s essential to equalize and shift by 90° the output signal from the rogowski coils. It consists of an active electronic circuit with negligible offset and a good linearity. The output signal can be used in oscilloscope, digital multimeter or data logger recording instrument.


SPECIFICATION:
ELECTRICAL CHARACTERISTICS
Current range：
1-200A/500A/1000A/2000A/5000A

1-500A/1000A/2000A/5000A/10000A
Output level (RMS):
1V
Accuracy:
class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
Linearity (10% to 100% of range):
±0.1% of reading
Frequency range/Bandwidth:
approx 10Hz to 100KHz
Conductor position sensitivity:
±2% Maximum
Inuence of external field:
±2% Maximum
Output terminals:
BNC plug　

G2 INTEGRATOR:
※ When you make the order, please notice what kind of current range do you require.

For more detailed data, please visit: http://www.heyiele.com/product/flexible_Rogowski_coil/
