Zyd Double-Stage Vacuum Transformer Oil Purifiers

본문 바로가기


Home > Product > Zyd Double-Stage Vacuum Transformer Oil Purifiers
Product
Zyd Double-Stage Vacuum Transformer Oil Purifiers
Posting date : Jul 18, 2017
Membership
Free Member Scince Jul 18, 2017
FOB Price
FOB USD 5000 - 30,000 / Set
Min. Order Quantity
1 set
Supply Abillity
100 sets per month
Port
shanghai
Payment Terms
L/C,T/T
Package
wooden case
Keyword :
Category
Contact
Mirana Yang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
ZHONGNENG
HS-CODE
8421-23
Package & Delivery Lead Time
Package
wooden case
Delivery Lead Time
15 days
Specifications

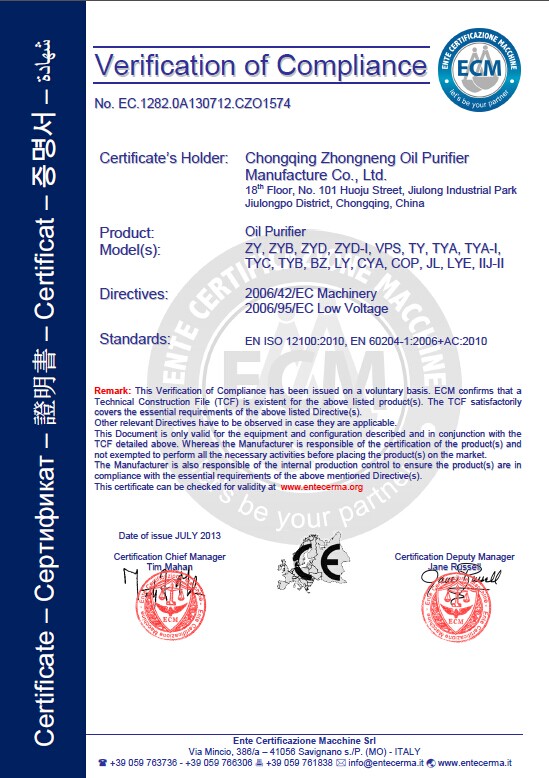

Type of Certification
CE
Reference no.
EC.1282.0A130712.CZO1574
Name.
CE
Issued By
ECM
Start Date (validity period)
2013-07-01
End Date (validity period)
2049-12-31

Detailed Description
Application ZHONGNNEG High Vacuum Transformer Oil Purifier, Oil Filtration Plant, Transformer Fluids Filtering Treatment System with a Double-Stage Vacuum SystemSeries ZYD Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally.  Feature: 1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state. 2.The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate. 3. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa. 4. High absorption speed, absorption speed power more than 333L/Sr. 5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively. 6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect. 7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power. 8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment. 9. The oil of any grades can be treated on line at the working site.
Advantages: 1.Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. 2.This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. 3, Stainless-steel cover ensure safe and reliable operation on outdoor. It can reach IP67.
