Card collecting machine

본문 바로가기


Home > Product > Card collecting machine
Product
Card collecting machine
Posting date : Oct 25, 2016
Membership
Free Member Scince Sep 19, 2016
FOB Price
no
Min. Order Quantity
1 unit
Supply Abillity
no
Port
no
Payment Terms
T/T
Package
no
Keyword :
Category
Contact
vivian
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Defero
Model Number
CM9
HS-CODE
8604-00
Package & Delivery Lead Time
Package
no
Delivery Lead Time
20 days
Detailed Description

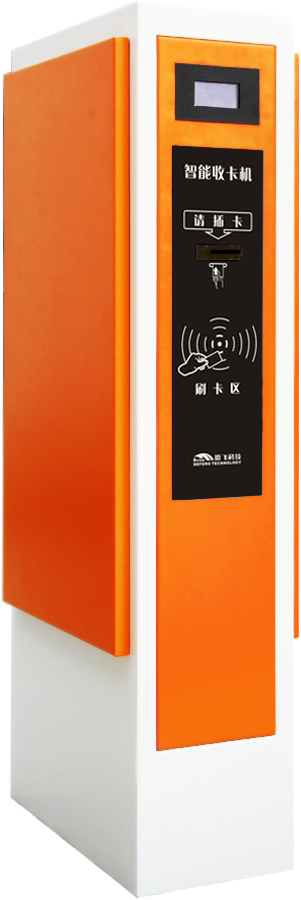

It also known as special parking card collecting machine. Card collecting machine of parking lot entrance is designed to meet the requirements of parking lot self-service management system performance, so it is easy to work with ground sensor, barrier gate and tickets dispenser. It is a part of parking lot management system. The machine can collect cards, control barrier gates, record parking lot information and feedback to service terminal and so on; therefore, it is an important part of S-Parking parking lot entrance management solution.
Functional Features
  • Intelligent cards manage the vehicles using long-term monthly cards, compatible with IC,ID card, can realize the functions of time card, counting card, prepayment card, mother-son card (one vehicle with several cards) and so on. Reading cards in and out of the parking lot, one vehicle one card, convenient, fast and safe
  • Setting free parking time,collecting cards within free parking time and the barrier gate is opened
  • Setting cards collecting and swallowing time voluntarily( The card automatically be swallowed if not be taken over the swallowing time)
  • Automatically to show the ticket dispenser status, easily for users’query
  • Supporting LCD or LED display, provide detailed operating information and system information
  • Supporting a variety types of charging standards
  • Optional voice prompts
  • Supporting offline work pattern,saving off-line data and sending back data to server when system is on-line again
  • Original illegal in and out detecting techniques, avoiding the vehicles without reading card or taking tickets to prevent management loophole
  • Anti-interference, lightning protection, excellent waterproof design
  • Modularized configuration structure is adaptable for various installation environments
Technical parameters
Dimension:500*310*1250(D*W*H)
Net weight:60KGS
Working voltage: DC24V/AC110V 60Hz/AC220V 50Hz
Power consumption: 30W(normal);120W(max)
Working temperature: -35℃~+65℃
Reading distance: 10 cm or less
Vehicle detection: Support
Voice prompts: Optional
Card type: IC
Off-line storage capacity: million messages
Communication interface: RS232/RS485/Wiegand 26
System platform: ARM7
Cabinet thickness:2mm
