12V 150AH solar system battery large capacity
Posting date : Dec 09, 2015
Membership
Free Member Scince Jul 01, 2015
FOB Price
negotiable
Min. Order Quantity
100pcs
Supply Abillity
300,000 Pieces per Month
Port
SHENZHEN OR GUANGZHOU
Payment Terms
T/T,L/C,WESTUNION
Package
pp bag for each, carton BOX
Keyword :
Category
Contact
Matrix
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Matrix
Model Number
NP150-12
HS-CODE
8506-
Package & Delivery Lead Time
Package
pp bag for each, carton BOX
Delivery Lead Time
15 days after receiving the deposit
Specifications

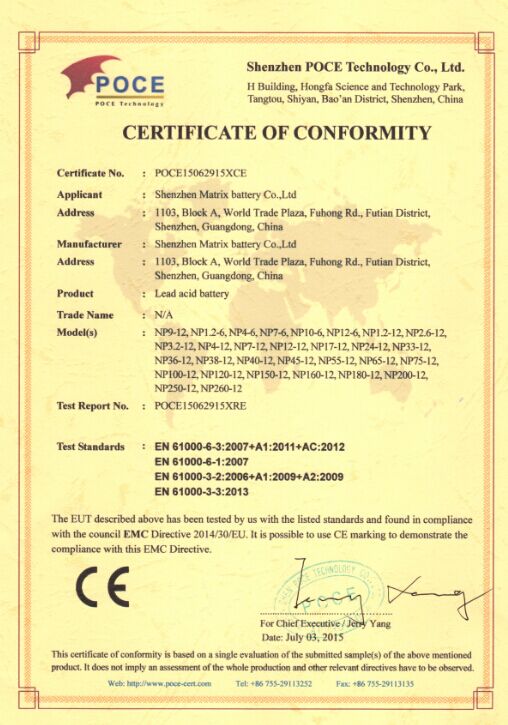

Type of Certification
CE
Reference no.
poce15062915xce
Name.
CE
Issued By
POCE
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Scope
LEAD ACID BATTERY

Detailed Description

Specification:

Battery Type: Valve Regulated sealed lead acid battery

Model No.: NP150-12

Nominal Voltage: 12V

Nominal capacity: 150Ah/10HR

Dimension: L483*W170*H239*TH242

Weight: 45kgs

Terminal: L11/T5

Applications:



Cycle Use

Portable VTR/TV, tape recorders, radio, etc. Power tools, lawn mowers, vacuum cleaners Cameras and photographic equipment Portable personal computers, word processors, portable terminals, etc. Portable measuring equipment Portable telephone sets Various power toys and hobby equipment Lighting equipment



Standby Use

Communications and electric equipment Emergency lighting equipment Fire alarm and security systems Various telemeter equipment Office computers, microcomputers, and other office automation equipment Robots, control equipment, and other factory automation equipment UPS power supply Emergency power supply in power generation plants and substations



Certificates: ISO9001&CE,MSDS

Nominal Voltage 12V
Rated capacity(10 hour rate) 150AH
Dimensions Length 483±1mm(19.02 inches)
Width 170±1mm(6.69inches)
Height 239±1mm(9.4inches)
Total Height 239±1mm(9.4 inches)





Capacity 25°C 10 hour rate(15.00A, 10.80V) 150.00AH
5 hour rate(26.00A, 10.50V) 130.00AH
1 hour rate(93.00A, 9.60V) 93.00AH
Internal Resistance Full charged Battery at 25 °C (77°F) 3.5mΩ
Capacity affected by temperature(20 hour rate) 40°C(104°F) 102%
25°C(77°F) 100%
0°C(32°F) 85%
-15°C(5°F) 65%
Self-Discharge at 25°C(77°F) Capacity after 3 month storage 91%
Capacity after 6 month storage 82%
Capacity after 12 month storage 64%
Charge (constant voltage) Cycle Initial Charging Currentless than45.00A   Voltage14.40-15.00 V
Float Voltage 13.50-13.80V
Terminal T10
