2V 500AH deep cycle battery

본문 바로가기


Home > Product > 2V 500AH deep cycle battery
Product
2V 500AH deep cycle battery
Posting date : Nov 23, 2015
Membership
Free Member Scince Jul 01, 2015
FOB Price
negotiable
Min. Order Quantity
200PCS
Supply Abillity
200pcs
Port
SHENZHEN OR GUANGZHOU
Payment Terms
T/T,L/C,WESTUNION
Package
pp bag for each, carton BOX
Keyword :
Category
Contact
Matrix
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Matrix
Model Number
np500-2
HS-CODE
8507-20
Package & Delivery Lead Time
Package
pp bag for each, carton BOX
Delivery Lead Time
15 days after receiving the deposit
Specifications

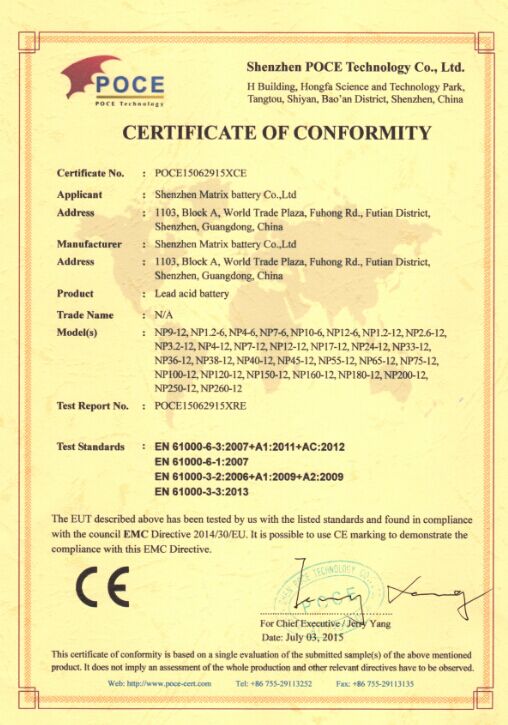

Type of Certification
CE
Reference no.
poce15062915xce
Name.
matrix
Issued By
poce
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Scope
LEAD ACID BATTERY

Detailed Description

 VRLA Battery





  • High performance, completely maintenance-free, low self-discharge
  • 100% precise quality testing, stable quality and high reliable performance
  • Unique grid alloy formula and updated manufacturing technique
  • Floating & standby useup to 10 years
  • Cycle use 1: Up to 280 cycles at 100% DOD
  • Cycle use 2: Up to 1800 cycles at 30% DOD





Application:





  • Telecommunications
  • Wind power system
  • Wheelchair
  • Golf trolley
  • Solar system
  • Engine starting
  • Floor cleaning machines
  • Boats









Construction:





  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid







Specification:



Battery Model

NP 500 -2  2V500AH

Designed Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(50.00A,10.8V)

5HR(80.30A,10.8V)

3HR(118.30A,10.8V)

1HR(253.30A,10.8V)

500.00AH

401.50AH

354.90AH

253.30AH

Dimensions

Length

Width

Height

Total Height

240mm (9.45inch)

173mm (6.81inch)

338mm (13.31inch)

365mm (14.37inch)

Approx. Weight

31.00Kg (68.36 lbs)

Internal Resistance

Full charged at 25℃:≤0.52mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use

2.40-2.50V(-5mV/℃), max. Current:150A

2.25-2.30V (-3.0mV/℃)
