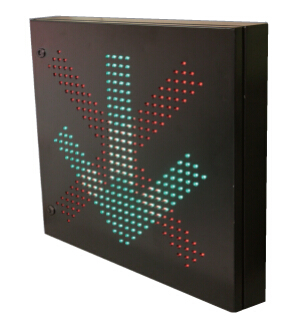

Agape's LED Lane Signals 320mm x 320 mm with High Brightness
Our information systems can be used to manage lanes for safety, emergency, and traffic optimization purposes. At toll gates, It can guide drivers to quickly choose the right payment type lane and know the right toll amount so they can pay quickly and keep traffic flowing. This information can be given through pictograms or text. In tunnels, the lane control displays guarantee security by stopping or diverting traffic in case of an emergency. Three types of displays are available:
Arrow Sign
Graphic display used in tunnels or tollgates to display bright color pictograms (red cross, green arrow, yellow arrow to the left or right) indicating lane usage. Graphic Sign:
Graphic display used in highway tolls to display color pictograms images showing the payment method for the corresponding lane. Applications:
Motoways, Tunels, Bridges, Toll stations, Parking lane etc.Benefits
1. Rugged aluminum construction able to withstand extreme environments2. Full 3 year warranty on the whole set in the industry3. LEDs have an estimated 100,000 hours of life4. Applies to En12966 norm5. Hand removable message displays6. Multiple messages available to each sign7. Built in dimmer photocell that adjusts brightness8. The ability to program any shape and color signals9. wirelessly programming, there is no need to remove the sign.10. In addition to the standard,signals can be stored in memory,and can be programmed to any pattern signals by user11. Used high-quality LED sign and guarantee the visibility of people working from a much greater distance than case with ordinary characters, and hence - increases the safety of working people.12. All characters can be displayed and can be set as a glowing or flashing permanently.
Feature
• LED panel that is able to show up to 4 different pictograms : green arrow , red cross and amber left and right side diagonal arrows .• It offers excellent visibility and a great contrast with the use of 5mm LEDs with high brightness and low power consumption .• Lightweight aluminum enclosure that allows access to the interior through front door , making it easy to install and maintain• Possibility to choose between different anchoring systems depending on the location of the panel .• Allows control of the signal through contacts , via serial port (RS232 or RS485) or via Ethernet(RJ-45) .• Possibility to incorporate photocell for automatic brightness control based on ambient light .• Possibility to offer the panel in different sizes and for different supply voltages .

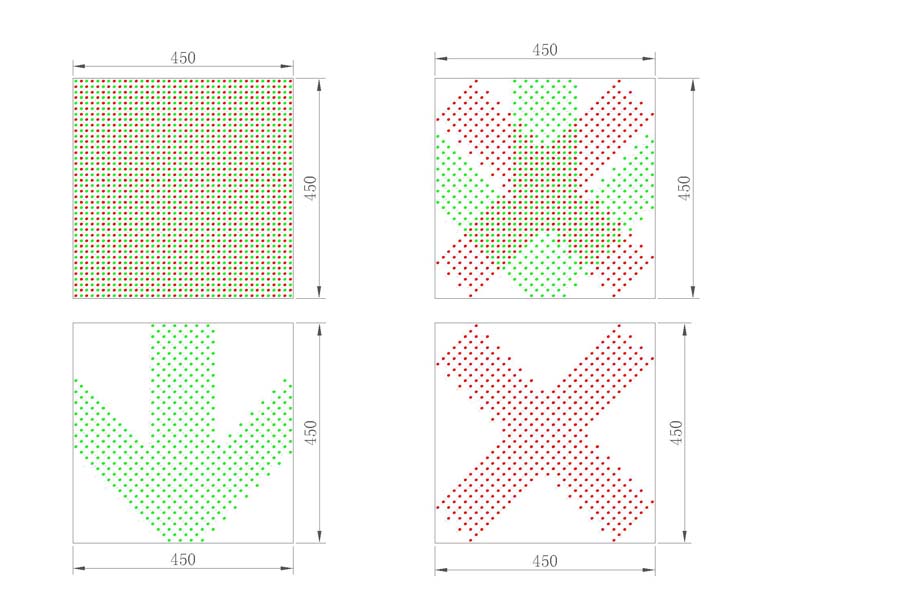

Drawings (Customized)
Specifications
Model : LCS 400 x 400 (2 Pictograms)
TECHNICAL SPECIFICATIONS
|
External dimensions ( h x w x d ) |
450 x 450 x 100 mm |
|
Display area ( h x w ) |
320 x 320 mm |
|
Housing material |
Aluminium |
|
Paint coating |
Dust polyester paint polymerized at 230℃ |
|
Loads |
EN 12899-1 : 2007 |
|
Deflections |
EN 12899-1 : 2007 |
|
Impact resistance |
Pass |
|
Vibration resistance |
Pass |
|
Passive safety |
EN12767 |
OPTICAL SPECIFICATIONS
|
Luminance |
L3 ( according to EN 12966-1 ) |
|
Luminance ratio |
R3 ( according to EN 12966-1 ) |
|
Color |
C2 ( according to EN 12966-1 ) |
|
Beam with |
B1—B6 ( according to EN 12966-1 ) |
|
Uniformity |
Pass |
|
Visible flicker |
≥90Hz |
ELECTRICAL SPECIFICATIONS
|
Input voltage |
230Vac±15% , 50Hz |
|
Electrical supply and limits |
Pass |
|
Electrical safety |
HD 60364-4-443 and HD 638 S1 |
|
Power consumption |
Approx. 30W |
PHYSICAL SPECIFICATIONS
|
Operating temperature range |
T1 : -15℃ --+60℃ T2 : -25℃ -- +55℃ |
|
Humidity |
Up to 95% |
|
Ingress protection rating (IP) |
IP65 |
|
Resistance to pollution |
D3, D4 |
EMC
|
Emission |
EN50293 |
|
Immunity |
EN50293 |
SYSTEM FUNCTION
|
Interfaces |
RS232,RS485,Ethernet,GPRS,3G |
|
Brightness Control |
256 level (automatic or manual) |
|
LED error detection |
Open – circuit and Short - circuit |
|
Sensor |
Temperature Sensor, Humidity Sensor |
|
Certification |
CE,Rohs |
Different models of Lane Control Sign are available to suit your specific needs . On the different application we can according to different legibility distances gives the best solution . For example : LCS 600 x 600mm,LCS 800 x 800mm,LCS 1000 x 1000mm. The elegant yes functional housing is designed to blend in with your corporate image . High-quality materials ensure optimum legibility and excellent long-term system availability .
