NBC-250N MIG welding machine

본문 바로가기


Home > Product > NBC-250N MIG welding machine
Product
NBC-250N MIG welding machine
Posting date : Dec 12, 2014
Membership
Free Member Scince Dec 08, 2014
FOB Price
EXW $423/set-$439/set
Min. Order Quantity
50 SETS
Supply Abillity
3000 sets-4000 sets/months
Port
FOB SHANG HAI
Payment Terms
T/T in advance L/C
Package
carton/plates
Keyword :
Category
Contact
cherry
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
EXPERT
Model Number
NBC-250N
HS-CODE
8515-
Package & Delivery Lead Time
Package
carton/plates
Specifications

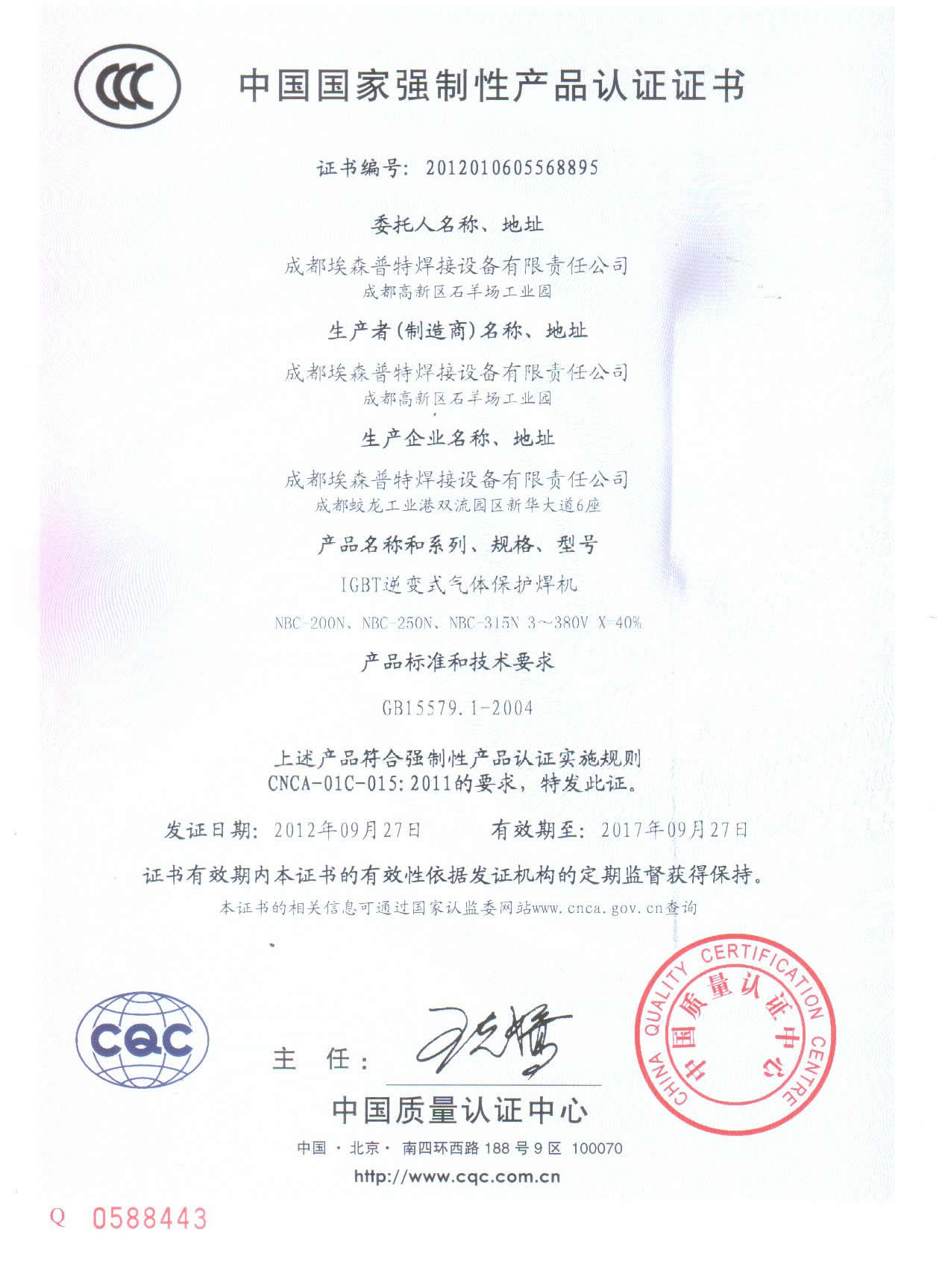

Type of Certification
3C
Reference no.
2012010605568895
Name.
3c
Issued By
china quality certification center
Start Date (validity period)
2011-06-16
End Date (validity period)
0000-00-00

Detailed Description
Power voltage (V)3phase /380V±15%Frequency (HZ)50/60Rated input current(A)10.8No-load voltage(V)60Output current & voltage range  (A/V)60/17-250/26.5Rated output current (A)250Rated duty-cycle (%)40100% load current(A)158Power factor λ0.93Efficiency (%)85Insulation classFCooling wayAirAdjusting range for wire feeding speed (m/min)2-18Post flow time (s)1Suitable wire diameter (mm)0.8、1.0、1.2Shell protection classIP21SHeater voltage (V)AC 36Unity size(L×W×H)(mm)522×240×480Split size(L×W×H)(mm)480×256×435weight (kg)28Suitable wire reel max diameter (mm)300Suitable board thickness(mm)more than 0.8Technical features:1adopted advanced soft switching inverter technic,stable  Cutting current2.The use of nano-electronic reactor to control circuit ,small spatter and good shaping 3. With strong ball cutting function in arc ending stage 4.Small volume,light weight,easy to move5.Suitable thin board welding Standard accessories :1.MIG torch2.Relief valve3Wire feeder (5m)4.Earth cable(3m)
