pe250x400 Big Quarry Jaw Crusher
Posting date : Sep 18, 2014
Membership
Free Member Scince Sep 17, 2014
FOB Price
1000$
Min. Order Quantity
1 set
Supply Abillity
100 sets /month
Port
Qingdao,Shanghai or others as required
Payment Terms
1.We usually accept T/C,T/T,D/P,D/A,etc. 2.Other payment terms are negotiable.
Package
1.Sand blasting, coat with high quality paint; 2.Product wrap by PP-Bubble 3.Load container, Spear Parts in wooden case.
Keyword :
Category
Contact
Honey
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Fote
HS-CODE
8442-30
Package & Delivery Lead Time
Package
1.Sand blasting, coat with high quality paint; 2.Product wrap by PP-Bubble 3.Load container, Spear Parts in wooden case.
Delivery Lead Time
0-20 working days
Specifications

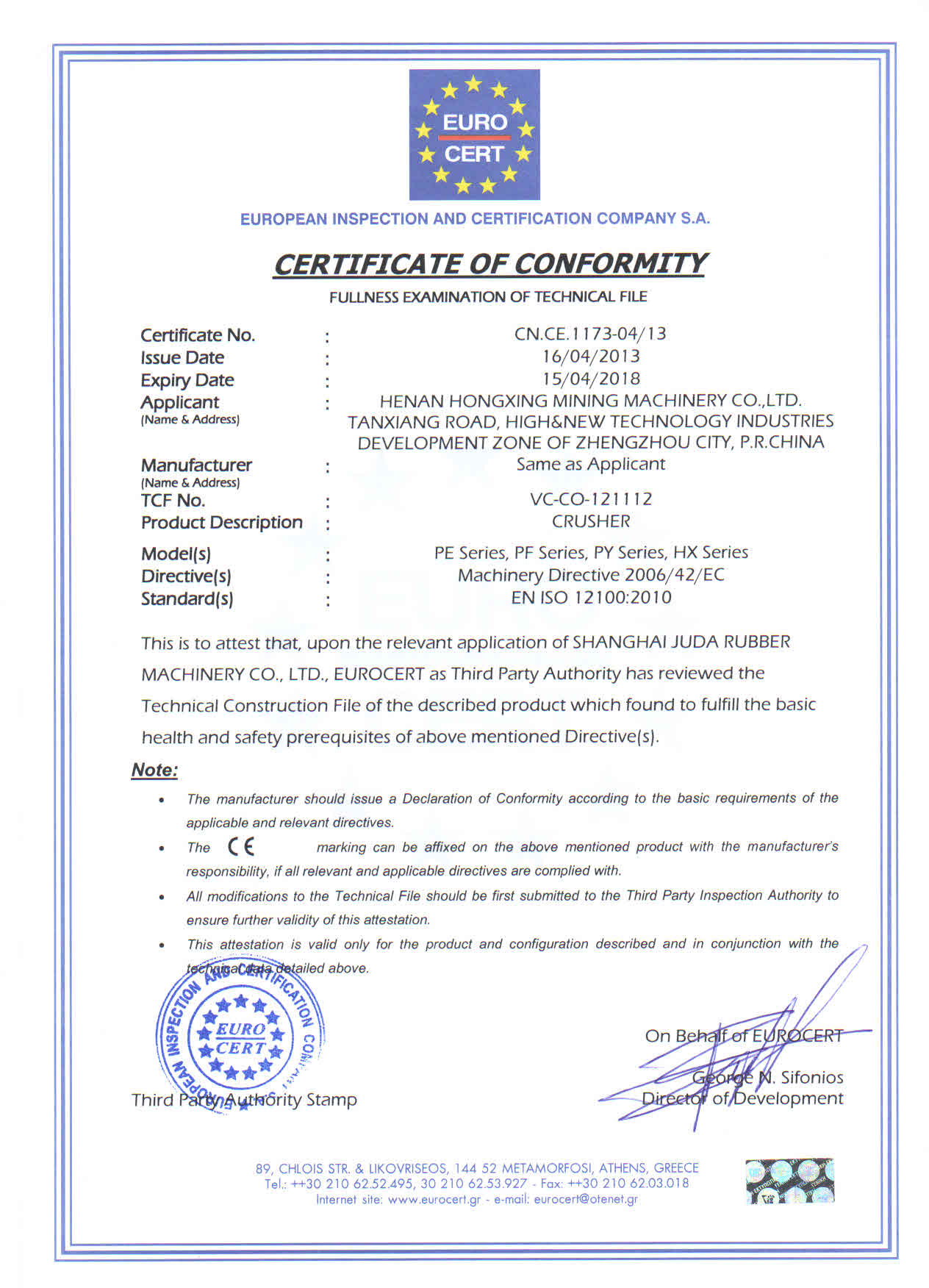

Type of Certification
Quality
Reference no.
CN .CE .1173-04/13
Name.
CE
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description

Specifications:Feeding size:120-1500mmDischarge opening:10-400mmProduction capacity:1-2200t/hOverview:pe250x400 Big Quarry Jaw Crusheris composed of bracket;jaw;eccentric shaft;jaw plate; spring, etc. The maximum compression strength of materials to be crushed is 320MPA. PE series jaw crusher is commonly used for primary crushing, and PEX series is used for secondary crushing and fine crushing.Features:1.Deep crushing cavity without dead zone.2.The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.3.The lubricating system of jaw crusher is safe and reliable.4.A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.5.To meet different client needs, the discharge gate is designed with a large adjusting range.6.This machine causes low noise and creates little dust.Advantages:1,World-class manufacturing processes and most advanced production materials2,High-quality steel castings , driven by two large steel flywheel. Forging stock processes heavy eccentric shaft resulting superior reliability.3,Bearing housings of jaw crusher for sale is overall steel structure, ensuring its complete fit with the crusher frame and greatly enhancing its radial strength.4,Finite element analysis techniques,making the crusher a higher strength.5,Adjustment of the discharge port is more quick and convenient.6,Larger, more durable eccentric shaft bearings and effective labyrinth sealing make the bearings' life long.

Model Feed opening(mm) Max.feeding size(mm) Adjusting range of discharge opening(mm) Processing capacity(t/h) Rotation speed of eccentric shaft(r/min) Motor power(kw) Total weight(t) Dimensions(L×W×H)(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
