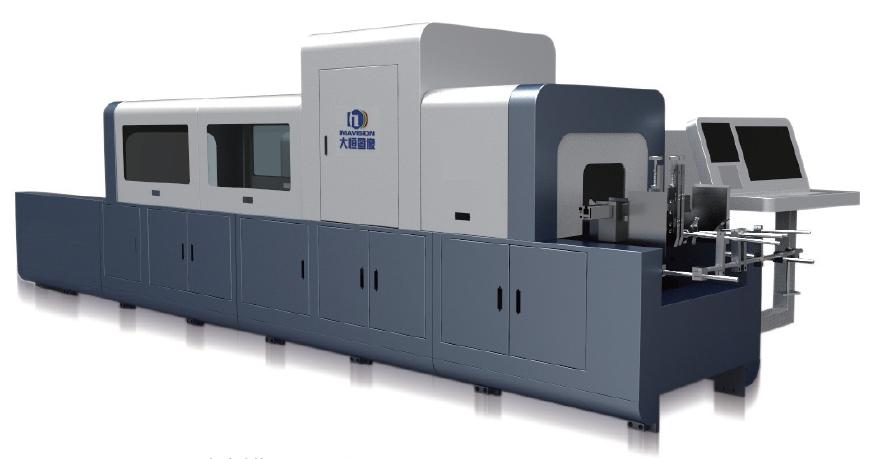

Printing Inspection Machine (DH-HSJP420)
Posting date : Jul 24, 2014
Membership
Free Member Scince Jul 23, 2014
FOB Price
100000~300000 rmb per unit
Min. Order Quantity
1 unit
Supply Abillity
we can supply according to your requirments
Port
China
Payment Terms
L/C DDP/ T/T
Package
standard wooden
Keyword :
Category
Contact
rosely
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Daheng
Model Number
DH-HSJP420
HS-CODE
8443-12
Package & Delivery Lead Time
Package
standard wooden
Detailed Description
Application: DH-HSJP420 is a sheet-fed inspection machine commonly used to inspect the print quality of cigarette packets and cartons.
Features: **High-speed handling, inspection of up to 130, 000 sheets per hour with a transportation speed of up to 300 meters per minute**Versatile inspection, multi-check points design to detect all the defects generated in printing processes like foil stamping, holographic printing, embossing, varnishing, etc. **Built-in shingle stream module and stacking device, ensuring that only 100% of good products will become a shingled stream and automatically form a perfect stack with a specified count**Proven designs such as integrated console and total equipment protection, making the Human-machine interaction safer and more convenient
 Specifications DH-HSJP420
  Maximum sheet size (L x W)  420 mm × 350 mm
  Minimum sheet size (L x W)  90 mm × 90 mm
  Paper quality  90 ~ 350 g/m²
  Maximum delivery speed  300 m/min
  Maximum inspection speed  130,000 sph (for cigarette packets)
  Stable inspection speed (for cigarette packets) soft packets:( 90-180 )g/m²-70,000 sphhard packets:(180-350)g/m²-100,000 sph
  Minimum defect size (as a point)  0.1 mm² (contrast ≥ 20)
  Minimum defect size (as a line) (W x L)  0.1mm × 5mm(contrast ≥ 20)
  Minimum color variances detected ( △ E)  △ E ≥ 3
  Minimum registration deviation detected  ±0.1 mm
  Accepted products handling Shingle Stream Module, Pile Stacking Module, Counting Module,Direct Output
  Rejected products handling  Shingle Stream Module, Angled Ejection Module
  Dimension (L x W x H)  7225 mm ×1070 mm×1880 mm
  Floor space  7225 mm ×2560 mm×1880 mm
  Gross weight  3,000 KG
  Total power  15 KW
