Printing Inspection Machine (DH-JP1020)
Posting date : Jul 24, 2014
Membership
Free Member Scince Jul 23, 2014
FOB Price
100000~300000 rmb per unit
Min. Order Quantity
1 unit
Supply Abillity
we can supply according to your requirments
Port
China
Payment Terms
L/C DDP/ T/T
Package
standard wooden
Keyword :
Category
Contact
rosely
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Daheng
Model Number
DH-JP1020
HS-CODE
8443-12
Package & Delivery Lead Time
Package
standard wooden
Detailed Description

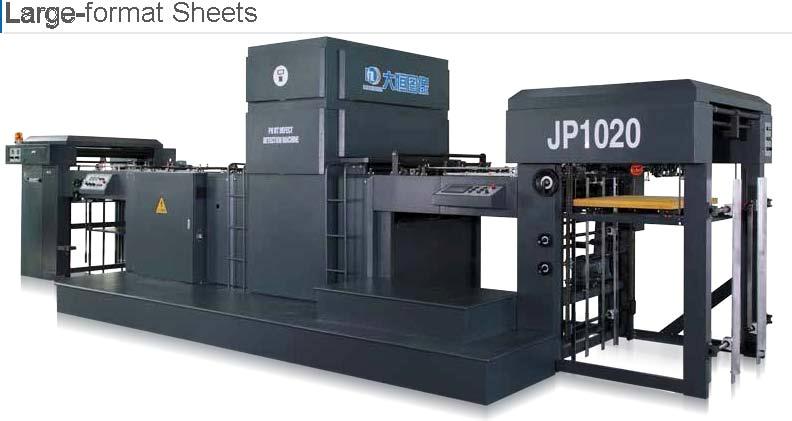

Application: DH-JP1020 is a sheet-fed inspection machine designed to inspect the print quality of large-format sheets before die-cutting process, and it is normally used in the printing of packs for cigarettes, pharmaceuticals and other consumer products.
Features: **High-speed inspection completed at transportation speeds of up to 11, 000 sheets per hour**Versatile inspection, multi-check points design to detect all the defects generated in printing processes like foil stamping, holographic printing, embossing, varnishing, etc. **Automatic feeding module available in two types - offset printing machine's feeder or stamping machine's feeder, which makes the operations easier**Support for non-stop inspection running 24/7, the sheets feeding and picking up achieved without stopping machine.
Specifications DH-JP1020
Maximum sheet size (L x W) 1020 mm × 720 mm
Minimum sheet size (L x W) 540 mm × 400 mm
Paper quality 90 ~ 400 g/m²
Stable inspection speed  Thick paper:( 200-400 )g/m²- 9,000sph Thin paper: (90-200)g/m²-6,000 sph
Maximum inspection speed 11000pcs/hour
Minimum defect size (as a point)  0.1 5mm² (contrast ≥ 20)
Minimum defect size (as a line) (W x L)   0.15mm × 5mm(contrast  ≥20)
Minimum color variances detected ΔE ≥3
Minimum registration deviation detected ±0.15 mm
Height of sheet stack in feeding module 1.3m
Height of sheet stack in products collection module  1.2m
Height of sheet stack in wastes collection module 1.2m
Dimension (L x W x H)  8,620 mm×1,880 mm×2,650 mm
Floor space 10,220 mm×3,750 mm×2,650 mm
Gross Weight 8000 KG
Total Power 38.2KW
