Aluminum Copper Clad Laminate ALCCL
Posting date : Oct 30, 2014
Membership
Free Member Scince Nov 29, 2013
FOB Price
28
Min. Order Quantity
1
Supply Abillity
50000 SHEETS
Port
SHANGHAI
Payment Terms
TT / LC
Package
WOODEN PALLET
Keyword :
Category
Contact
Cynthia
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LESON
Model Number
ALCCL
HS-CODE
7410-21
Package & Delivery Lead Time
Package
WOODEN PALLET
Delivery Lead Time
5-18 DAYS
Specifications

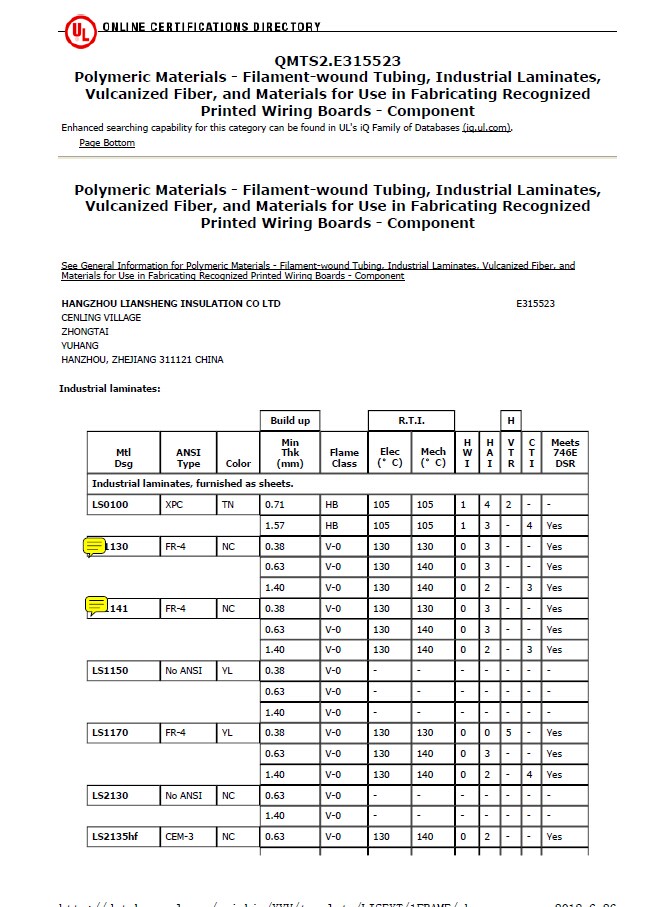

Type of Certification
UL
Reference no.
E315523
Name.
UL
Issued By
UL LAB
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Scope
insulation material

Detailed Description
Aluminum Copper Clad Laminate  ALCCL


Material

Sandwich structure, which includes layers of conductor, insulator and met High thermal conductive AL base CCL al base (Aluminum Based).

Standard Size (mm)

500×610mm,550×610mm,550×1220mm,550×1220mm,1000×1220mm,1100×1220mm

Circuit Layer(copper foil )

18μm,35μm,70μm,105μm(Hoz,1oz,2oz, 3oz)

Thermal Dielectric Layer Thickness

75μm,100μm,125μm,150μm,(3mil,4mil,5mil,6mil)

Thickness

0.8mm,1.0mm,1.2mm,1.5mm,1.5mm,2.0mm

Aluminum Substrate Type

1100,1060,3003,5052,6061 Anodization

Masking Film

PE,PET,PI

Using scope

 LED lighting, public lighting, Backlight module, outdoor LED display , Industrial electronics



The Thermal conductivity is 1.0-3.0W/M. K, It can fit the demand of high end and MID-range products, with high cost performance. All products pass ROSH standard, have good property and meet low-carbon environmental trend. Properities 1. Excellent thermal conductivity 2. Excellent Breakdown Voltage 3. ROSH compliance 4. Excellent solder heat endurance 5. Excellent mechanical properties 6. Excellent electromagnet 7. Can use external cooling device directly 8. High cost performance
