Detailed Description

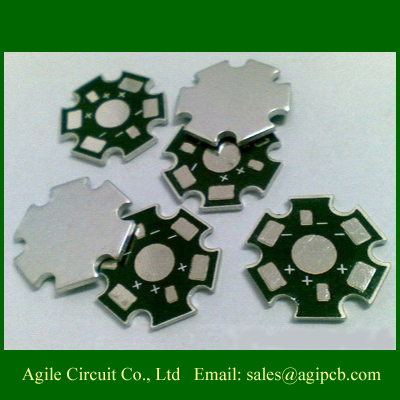

Aluminum based board /Al based PCB/ Al subtracted PCB, Aluminum clad prototype
Al PCB/ AL base PCB
Feature:
OEM/ODM service
Aluminum clad prototype
Specification:
1. Layer: 1 Layer, 2 Layer
2. Material: Aluminum Base Metal Clad
3. Board thickness: 1.0mm, 1.5mm, 2.0mm, and 3.0 mm
4. Copper thickness: 1 oz/2oz
5. Conductor width and space: 6 mil
6. Surface treatment: HASL, Lead free HASL, OSP, Immersion Gold, Flash Gold
7. Solder mask: White, Black, Green
8. Lead time 5-12 days
Advantage:
1. Dissipation of heat without using additional heatsinks.
2. mechanically rigid, increasing the physical strength of the assembly
3. Reduces the effect of thermal stress on all components, increasing life and durability
4. Improved thermal conduction leading to versatility in component and tracking layout enabling PCB dimensions to be reduced.
5. Reduces component operating temperatures, improving reliability.
6. Substrate aluminum can be drilled / machined and routed, aiding PCB mounting
Application:
1. Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier
2. Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit
3. Office automation equipment: motor drive, and so on.
4. Automotive: Electronic regulator, lighter, power controller
5. Computer: CPU board, floppy disk drive, power supply devices
6. Power Modules: converter, rectifier, bridge solid-state relay
7. Lighting lamps: LED Lights
