Quick Detail
Place of Origin
HS-CODE
84-
Package & Delivery Lead Time
Detailed Description

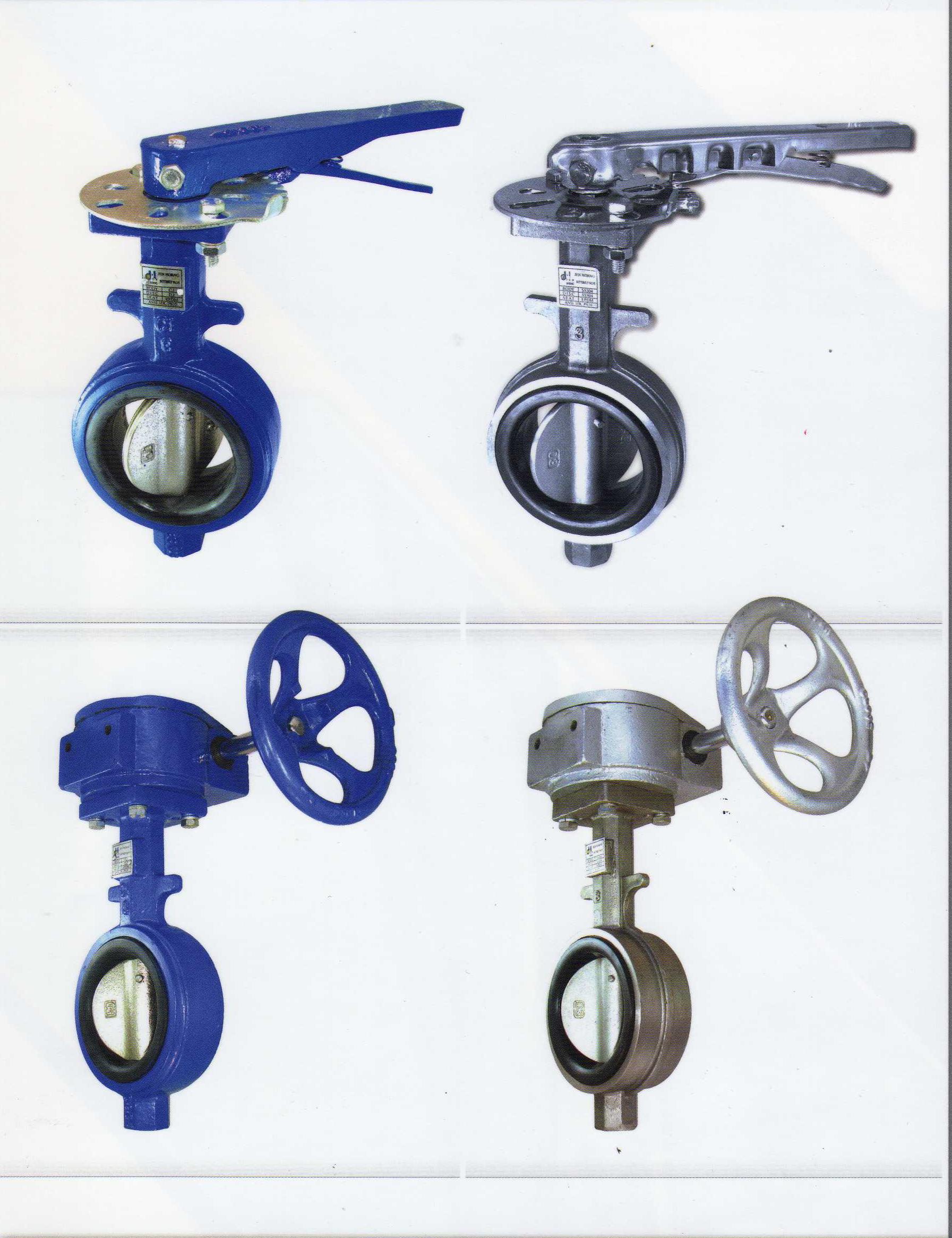

Wafer Type Metal Butterfly Valve
1. Wide Selection of material
2. Applicable for various medium
3. Minimized Operation Torque
4. Energy performance
Technical parameters:
mode: ESW700L, ESW700G, ESW700N
size range: 11/2"~24" (DN40~DN600)
body type: ANSI150#, JIS10K, and PN10
face to face dimension: ISO5752
end connection: ISO5211 or DIN3337
body: FC, FCD, 304, 316, and WCB
Disc: FCD, 304, 316, and AL-BZ
Seat: PDM, white EPDM, NBR, PTFE, and VITON
Stem: SS410, SS416, and SS304
Operation: Lever, Gearbox,Pneumatic Actuator,Electric Actuator
Product Test: It's conformity with“PI598", "ANSI16.34" & "SO5208" test.
EAGLESKY is an actuator and valve manufacturer since 1986.
The products are including Quarter-turn, Spring-return and Linear electric actuator, etc.
Our actuators suit for ball valves, butterfly valves, plug valves, gate valves, and dampers, etc., which are widely applied for the control on water level, temperature, irrigation, water treatment, air condition, chemical engineering, foods and so on.
