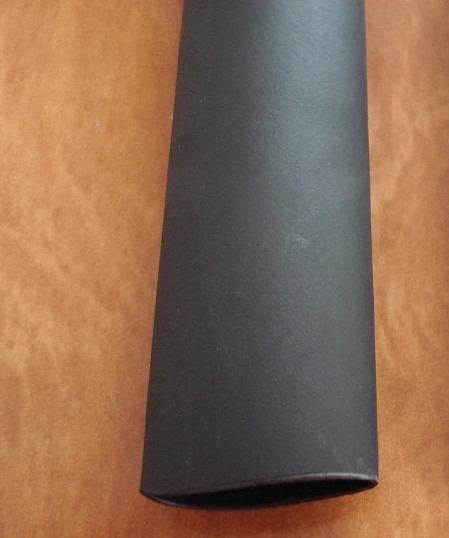

sell 3：1 Double-wall heat shinkable tube

Quick Detail

Package & Delivery Lead Time

Detailed Description

1.Description 3：1 Double-wall heat shinkable tube, production by polyolefin class halogen-free materials and hot melt adhesive double co-extrusion produce process. Outer for polyolefin with insulated, halogen-free,flame retardant , low temperature shrinkage characteristics; Inside is hot melt adhesive lining with low melting point, waterproof ,sealed and mechanical strain buffer, etc. Widely used in the various types of wire, wire sealing insulation and strapping fixation; Marine electric wire electric cable waterproof, moistureproof; the metal sealing corrosion. 2.Characteristic  Uvioresistant  Up temperature shrinkage:70C All temperature shrinkage:125C Operating Temperature:-45C~125C  Shinkable Ratio:3:1  Rohs Stardard:Rohs  Stardard Color:Black.Other colors can available for customer request 3.Qualification Performance Test Way Index Extention ASTM D 2671 ≥10.4MPa Breaking Elongation ASTM D 2671 ≥300% After Aging 158℃×168h ≥7.3MPa After Aging Breaking Elongation 158℃×168h ≥100% Axial rate ASTM D 2671 -8%～+8% Flame Resistant SAE-AMS-DTL-23053/5 60s Off-Self Time Breakdown Strength IEC 243 ≥15Mv/m Volume Resistivity IEC 93 ≥1014Ω•cm 4.Hot Melt Adhesive Performance Performance Test Way Index Softening Point ASTM D E28 85℃ Water Absorption ASTM D 570 ≤0.2% Peel Strenght(PE) ASTM D 1000 120N/25mm Peel Strenght（AL） ASTM D 1000 80N/25mm 5.Specification Specification Inside Diameter Before shinkable(mm) Freedom Shinkable Size Package Metric British Metric Inside Diameter Wall Thickness Adhesiver Thickness Meter/Roll Φ2.4 3/32 ≥2.4 ≤0.80 0.85±0.15 0.35±0.08 200 Φ3.2 1/8 ≥3.2 ≤1.00 0.95±0.15 0.35±0.08 200 Φ4.8 3/16 ≥4.8 ≤1.60 1.10±0.15 0.40±0.08 100 Φ6.4 1/4 ≥6.4 ≤2.20 1.20±0.15 0.45±0.08 100 Φ7.9 5/16 ≥7.9 ≤2.70 1.35±0.15 0.50±0.08 100 Φ9.5 3/8 ≥9.5 ≤3.20 1.45±0.15 0.50±0.08 50 Φ12.7 1/2 ≥12.7 ≤4.20 1.70±0.15 0.50±0.08 36.6 Φ15.0 5/8 ≥15.0 ≤5.20 1.80±0.20 0.55±0.10 30.5 Φ19.1 3/4 ≥19.1 ≤6.30 2.00±0.20 0.55±0.10 30.5 Φ25.4 1 ≥25.4 ≤8.50 2.10±0.20 0.55±0.10 30.5 Φ30.0 1-1/4 ≥30.0 ≤10.2 2.20±0.20 0.60±0.10 24.4 Φ39.0 1-1/2 ≥39.0 ≤13.5 2.40±0.20 0.60±0.10 18.3 Φ50.0 2 ≥50.0 ≤17.0 2.70±0.20 0.70±0.10 12.2
