Product Detail
Company Info

Quick Detail
Place of Origin
HS-CODE
27-
Package & Delivery Lead Time
Detailed Description

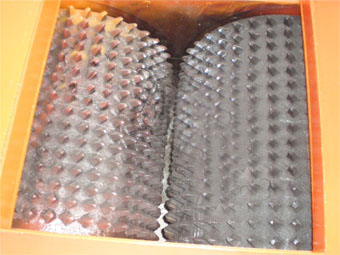

Application: Mainly used for the crushing of medium or lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production. Working principle: A roll crusher crushes using compression, with two rolls rotating about a shaft, towards the gap between the rolls. The gap between the rolls is set to the size of product desired, with the realization that the largest feed particle can only be 4 times the gap dimension. The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls. Advantages: Wear resistant liners that may be replaced with rolls in situ Compact size relative to capacity Reduced maintenance Permits foreign, un-crushable material to pass Adjustable product size Build up of sticky material minimized Negligible moisture loss due to heat generation or wind Production of fines minimized Features: Grooved, toothed roll faces Replaceable, cast alloy steel drum liners Shaft mounted helical bevel gear motors One roll spring loaded Adjustable gap Range of standard single and double roll toothed crushers Adjustable scrapers Detail Technical Parameters of Our Double Toothed Roll Crusher are in our Website 3w.cncrusher.com
