Detailed Description
Product Description

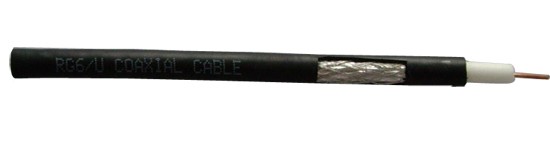

Coaxial Cable( RG6):
Specifications:
1)1.0ccs+FPEOD: 4.8+Alfoil+64*0.12tc+OD: 7.0
2) Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.
ATTENUATION:(-dB/100m,20Centigrade)
100MHZ 10.3dB
200MHZ 11.9dB
500MHZ 17dB
800MHZ 22.7dB
1000MHZ 29.4dB
1350MHZ 30.5dB
1750MHZ 35.5dB
2050MHZ 39.2dB
2500MHZ 50dB
