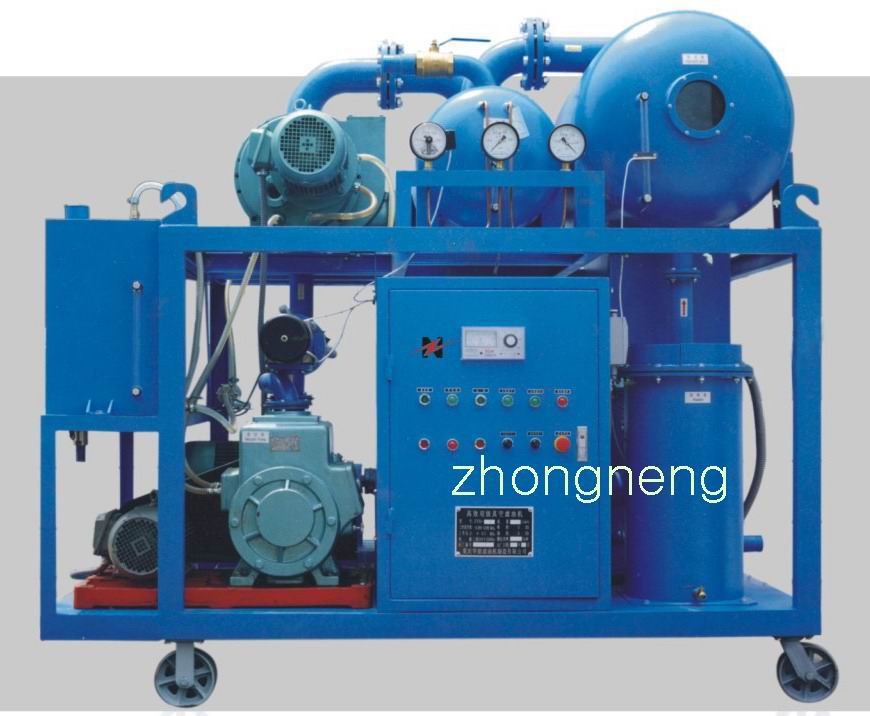

Double-Stage vacuum oil purifier

Posting date : Aug 04, 2010

Click enlarge Image

Membership

Free Member Scince Aug 04, 2010

Keyword :

Category

SERVICES |

Contact

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

HS-CODE

S06-

Package & Delivery Lead Time

Detailed Description

Application It is mainly used for purifying the insulating oil in all kinds of large power equipments that are above 110kV especially for the altitude is over 500 meters. Feature 1. High vacuum:ultimate-Vacuum ≤5Pa, working vacuum ≤35Pa 2.High absorption speed: Absorption speed power≥333L/Sr. 3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly 4. UK G technology by which the trace water that shows chain, such as desolved water, can be removed effectively. 5. Destinctive remove impurities system filtering through double FH trapoidal network and absorbing by high polymer without the merchanical power. 6. Especially applied to Vacuum oiling and dryig for power transmmision equipments that are over 110kV 7. Can be operated both on-load and off-load. Item unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300 flow rate l/m 30 50 100 150 200 250 300 vacuum range Mpa -0.08~-0.099 working pressure ≤0.3 temperature range âÂÂÂÂÂÂ 20~80 power supply Three phases 50Hz 380V (as per requirements) working noise dB(A) ≤75 ≤75 ≤80 ≤80 ≤80 ≤82 ≤85 heating power kW 30 30 45 60 75 90 120 total poower kW 35.5 37.5 52.5 71.4 86.5 102.5 135 inlet/outlet cabiler mm 25 32 42 50 50 60 60 weight Kg 450 550 900 1150 1450 1600 1950 dimenssion mm 1250x900x1700 1400x950x1850 1750x1250x1900 1800x1300x1950 2000x1400x2100 2050x1500x2100 2500x1800x2400 breakdown voltage kV ≥65 water content PPM ≤5 gas content % ≤0.1 particle size μ ≤1~5(without carbon) The dimension and weight will be changed with the change of the technical specification. Advantages: Comparing with the single-stage vacuum oil purifier, this machine dewaters, degassses and removes the impurities more quickly, more completely, and make the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system. It is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.
