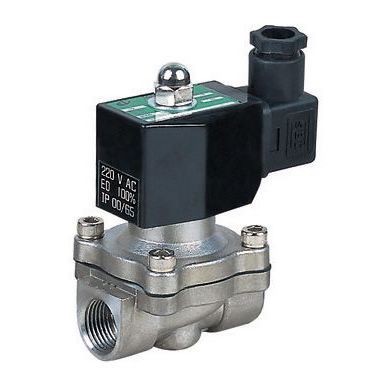

2WB Series stainless Steel Fluid Solenoid valve
Feature
1 Adopting straight-action diaphragm sructure without pressure starting
enlarges its applicable scopes.
2 Adopting plate diaphragm structure with reliable start and close lengthens
the service life of the product.
3 Selecting plastic sealed coil improves the safe application of this product
under many environments.
Technology Parameter
Item Parameter
Operating Medium Water,weak,acid&alkali
Motion Pattern Direct Drive type
Type Diaphragm Type
Pressure Difference 0~1.0Mpa
Working Pressure 1.0Mpa
Medium Temperature -5~80℃
Environment -5~60℃
Install Method Wantonly
Voltage AC380V,220V,110V,36V,24V
DC220,110V,36V,24V,12V
Can choices of plastic capsulation coil or common coil.
Specification
Model Port Size Orifice (mm) Cv Value
Pressure Difference
(MPa) Power
VA Overall Size
L H D
2WB-15 G1/2” 16 4.8 0~1.0 14 70 100 93
2WB-20 G3/4” 20 7.6 0~1.0 14 73 102 100
2WB-25 G1” 25 12 0~1.0 14 100 106 104
2WB-35 G11/4” 35 28 0~0.7 50 125 158 141
2WB-40 G11/2” 40 28 0~0.7 50 125 158 141
2WB-50 G2” 50 48 0~0.7 50 167 168 157
