Gas spring strut YS616
Posting date : Feb 28, 2017
Membership
Free Member Scince Jul 23, 2009
FOB Price
$3.2/pc
Min. Order Quantity
10 pcs
Supply Abillity
1000 pcs/week
Port
Guangzhou
Payment Terms
T/T,30% deposit,70% balance before shipment
Package
10 pcs/inner box, 100 pcs/carton
Keyword :
Category
Contact
Candy
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS616
HS-CODE
8302-42
Package & Delivery Lead Time
Package
10 pcs/inner box, 100 pcs/carton
Detailed Description

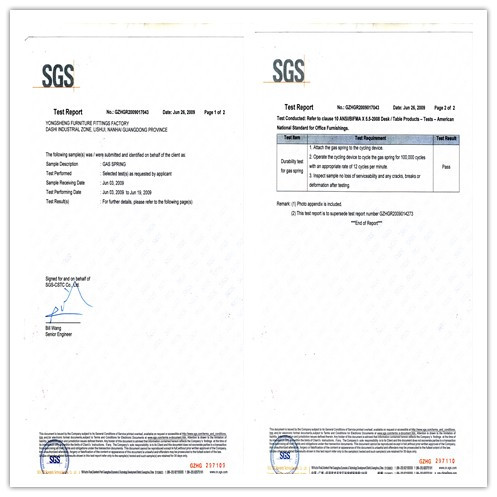

SGS Certificate

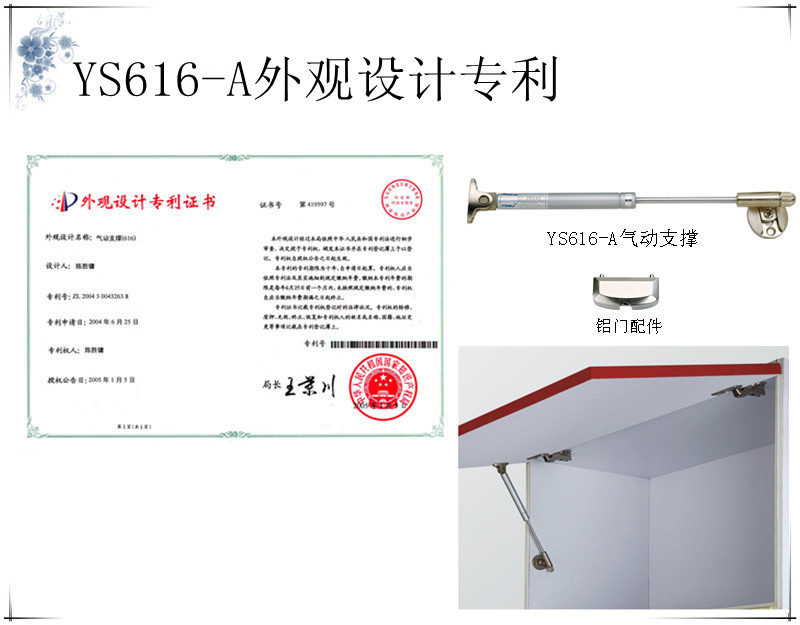

Own Appearance Design Patent Certificate





Product Description:





A、cylinder: seamless steel pipe20#, Φ 15*1mm



B、piston rod: steel 45#, Φ 6mm



C、piston: brassH62,



D、sealing parts: O-ring fluoro rubber,



E、end fittings: PA66,



F、gas: nitrogen,



G、aircraft hydraulic oil ( still work well below 58°)









Features:

A、upward opening, two stay

    stay 1:  up-opening to 30°,the door lift up gently by itself.

    stay 2:  the door slow down to completely opening when the angle ups to 80°。

B、closing: down-closing to 50°,the door full close by itself

Product Advantages:

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles

B、Finish: metallic paint, scratch resistance, NSS 8grade/48h

C、aluminum frame and glass door is achieved







Product Parameters

A、Application: for all up-opening door, still work well between -50°~ 80°

B、Installation conditions:

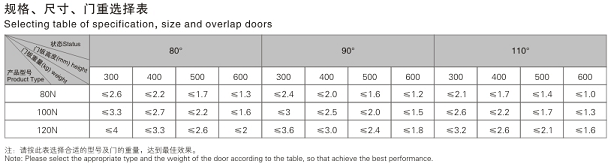

   a、different choice according to the door weight and door height   b、over 600cm * 400cm, paired using is the best



Others (Packing and services):

Package: 10pcs/inner box,100pcs/box,

N.W/G.W: 20kgs/20.5kgs MEAS: 34.5cm * 33.2cm * 29.5cm,

Delivery Date: Normally in one month

MOQ:  3000pcsSamples

Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )
